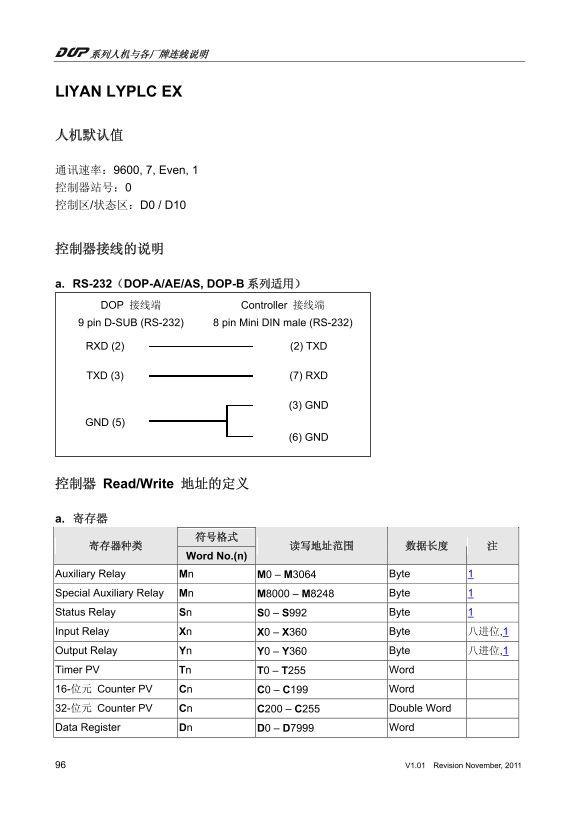

LIYAN LYPLC EX
通讯速率：9600, 7, Even, 1 控制器站号：0 控制区/状态区：D0 / D10
a. RS-232（DOP-A/AE/AS, DOP-B 系列适用） DOP 接线端 Controller 接线端 9 pin D-SUB (RS-232) 8 pin Mini DIN male (RS-232)
RXD (2) (2) TXD
TXD (3) (7) RXD
(3) GND
GND (5)
(6) GND
控制器 Read/Write 地址的定义
Word No.(n)
Auxiliary Relay Mn M0 – M3064 Byte 1 Special Auxiliary Relay Mn M8000 – M8248 Byte 1 Status Relay Sn S0 – S992 Byte 1 Input Relay Xn X0 – X360 Byte 八进位,1 Output Relay Yn Y0 – Y360 Byte 八进位,1 Timer PV Tn T0 – T255 Word 16-位元 Counter PV Cn C0 – C199 Word 32-位元 Counter PV Cn C200 – C255 Double Word Data Register Dn D0 – D7999 Word
96 V1.01 Revision November, 2011
