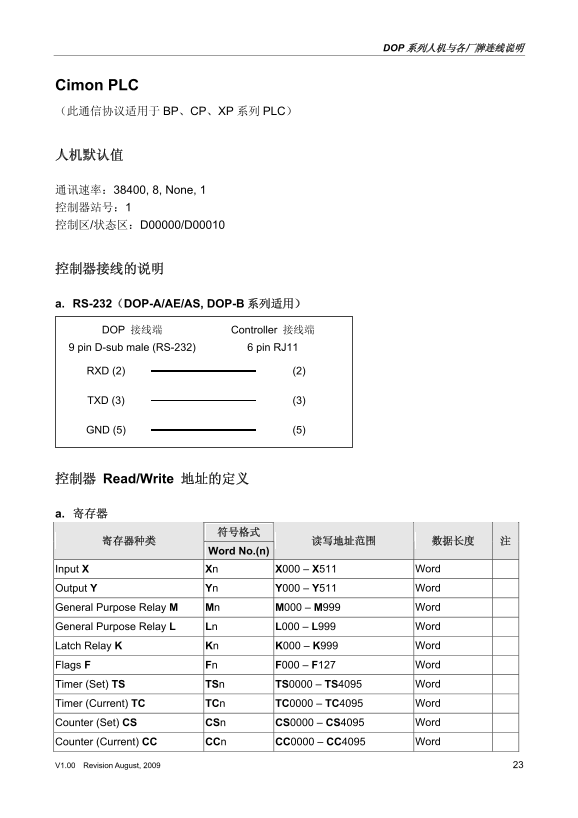

Page 1 Text Content
DOP 系列人机与各厂牌连线说明
Cimon PLC （此通信协议适用于 BP、CP、XP 系列 PLC）
通讯速率：38400, 8, None, 1 控制器站号：1 控制区/状态区：D00000/D00010
a. RS-232（DOP-A/AE/AS, DOP-B 系列适用）
DOP 接线端 Controller 接线端 9 pin D-sub male (RS-232) 6 pin RJ11
RXD (2) (2)
TXD (3) (3)
GND (5) (5)
控制器 Read/Write 地址的定义
Word No.(n)
Input X Xn X000 – X511 Word Output Y Yn Y000 – Y511 Word General Purpose Relay M Mn M000 – M999 Word General Purpose Relay L Ln L000 – L999 Word Latch Relay K Kn K000 – K999 Word Flags F Fn F000 – F127 Word Timer (Set) TS TSn TS0000 – TS4095 Word Timer (Current) TC TCn TC0000 – TC4095 Word Counter (Set) CS CSn CS0000 – CS4095 Word Counter (Current) CC CCn CC0000 – CC4095 Word
V1.00 Revision August, 2009 23
