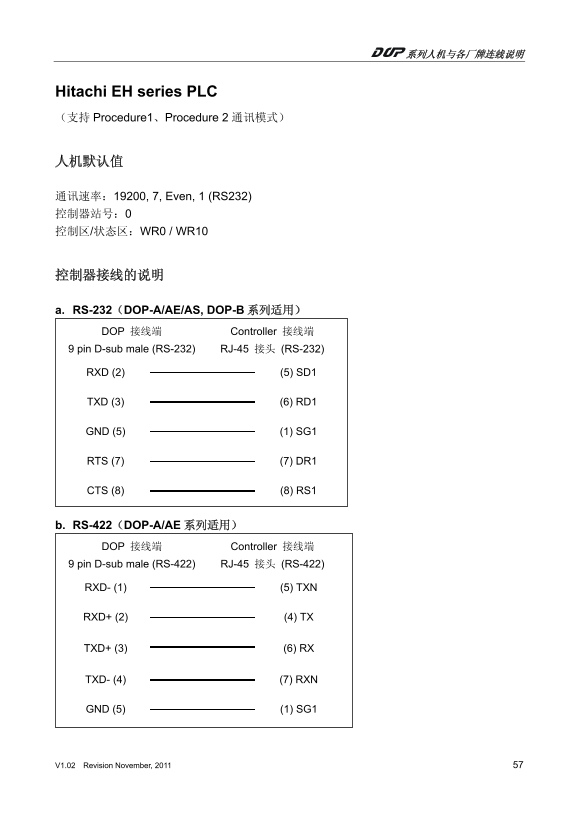

Page 1 Text Content
Hitachi EH series PLC （支持 Procedure1、Procedure 2 通讯模式）
通讯速率：19200, 7, Even, 1 (RS232) 控制器站号：0 控制区/状态区：WR0 / WR10
a. RS-232（DOP-A/AE/AS, DOP-B 系列适用） DOP 接线端 Controller 接线端 9 pin D-sub male (RS-232) RJ-45 接头 (RS-232)
RXD (2) (5) SD1
TXD (3) (6) RD1
GND (5) (1) SG1
RTS (7) (7) DR1
CTS (8) (8) RS1
b. RS-422（DOP-A/AE 系列适用） DOP 接线端 Controller 接线端 9 pin D-sub male (RS-422) RJ-45 接头 (RS-422)
RXD- (1) (5) TXN
RXD+ (2) (4) TX
TXD+ (3) (6) RX
TXD- (4) (7) RXN
GND (5) (1) SG1
V1.02 Revision November, 2011 57
