Delta Industrial Automation HMI TCP Connection Manual
Summary
Integrating your industrial control system with precision. This technical manual provides comprehensive connection instructions and detailed read/write memory mapping for the Panasonic FP7 Series HMI when linked to various PLC brands. It covers essential data addressing, defining ranges for internal/external relays, general data registers (DTn, SDn), timers, counters, and dedicated I/O points. Designed for automation engineers and technicians, this guide ensures accurate communication setup and reliable programming across diverse industrial hardware platforms.
Page 1 Text Content

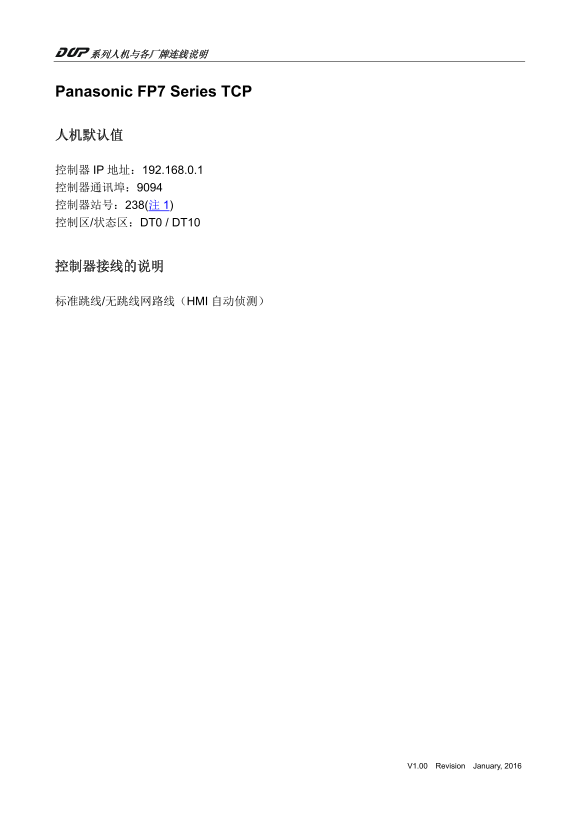

Panasonic FP7 Series TCP
控制器 IP 地址：192.168.0.1 控制器通讯埠：9094 控制器站号：238(注 1) 控制区/状态区：DT0 / DT10
标准跳线/无跳线网路线（HMI 自动侦测）
V1.00 Revision January, 2016
