This comprehensive manual provides detailed technical specifications for integrating the Delta CP2000 series controller with various industrial brands and systems. It serves control engineers, technicians, and automation integrators by defining crucial communication methods, including RS-485 wiring standards, extensive register mapping rules (for Analog Value and Binary Value), and precise object property read/write parameters. Use this guide for seamless setup of data exchange, ensuring reliable performance across your automation infrastructure.

📄 Preview ‹ PAGE OF 8 ›

‹

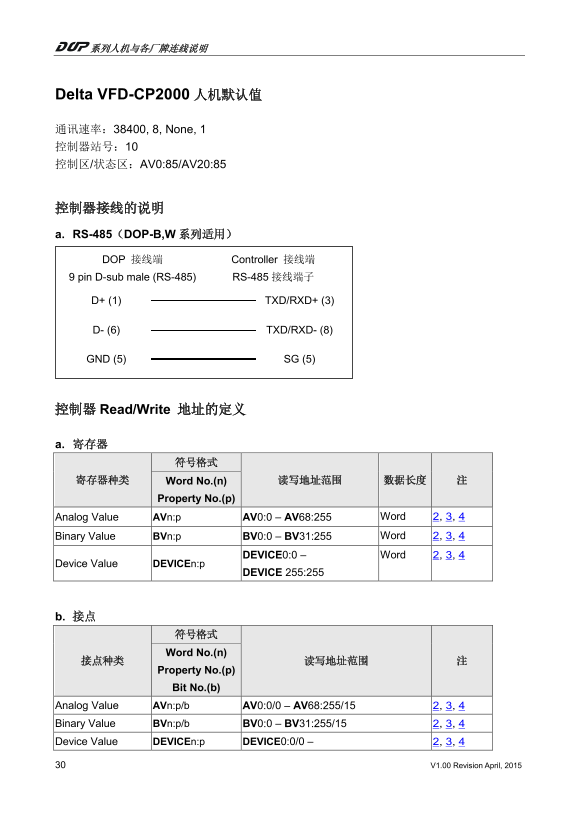

Delta Industrial Automation HMI Interface VFD-CP2000 Online Manual - Page 1

›

Page 1 Text Content

Delta VFD-CP2000 人机默认值

通讯速率：38400, 8, None, 1 控制器站号：10 控制区/状态区：AV0:85/AV20:85

控制器接线的说明 a. RS-485（DOP-B,W 系列适用）

DOP 接线端 Controller 接线端 9 pin D-sub male (RS-485) RS-485 接线端子

D+ (1) TXD/RXD+ (3)

D- (6) TXD/RXD- (8)

GND (5) SG (5)

控制器 Read/Write 地址的定义

寄存器种类读写地址范围数据长度注 Word No.(n)

Property No.(p)

Analog Value AVn:p AV0:0 – AV68:255 Word 2, 3, 4 Binary Value BVn:p BV0:0 – BV31:255 Word 2, 3, 4

DEVICE0:0 – Word 2, 3, 4

Device Value DEVICEn:p

DEVICE 255:255

符号格式 Word No.(n)

Property No.(p) Bit No.(b)

Analog Value AVn:p/b AV0:0/0 – AV68:255/15 2, 3, 4 Binary Value BVn:p/b BV0:0 – BV31:255/15 2, 3, 4 Device Value DEVICEn:p DEVICE0:0/0 – 2, 3, 4

30 V1.00 Revision April, 2015

Page Summary Contents For Delta Industrial Automation HMI Interface VFD-CP2000 Online Manual

Page 1 Delta VFD-CP2000 人机默认值通讯速率：38400, 8, None, 1 控制器站号：10 控制区/状态区：AV0:85/AV20:85 控制器接线的说明 a. RS-485（DOP-B,W 系列适用） DOP 接线端 Controller 接线端 9 pin D-sub male (RS-485) RS-485 接线端子 D+ (1) TXD/RXD+ (3) D- (6) T...

Page 2 DEVICE255:255/15 注1 HMI 的站号必须为 0～127。注2 输入地址时，可以透过选择 Property 名称来代替手动输入 Property ID。各个 Object Property 请参考下列注 3。注3 Property Table of Object Object Name Property Name Property ID Data type AV Descrip...

Page 3 AV Units 117 Enumerated BV Active text 4 Character String BV Description 28 Character String BV Event state 36 Enumerated BV Inactive text 46 Character String BV Object identifier 75 BACnet Object Ide...

Page 4 注4 CP2000 Object Table Analog Value Object AV0~AV26 的 property ”Present Value”为可读写 Object R/W Object Name Object Description Unit Number AV0 RW Reserved Reserved UNITS_NO_UNITS AV1 RW Freq Ref Value F...

Page 5 AV22 will modify data which is P9-22 AV22 RW (P9-22 map set) mapping to Depends AV23 will modify data which is P9-23 AV23 RW (P9-23 map set) mapping to Depends AV24 will modify data which is P9-24 AV2...

Page 6 terminal Display output power angle of U, V, UNITS_POWER_FACT AV48 R Power Angle OR Display actual output power of U, V, AV49 R Output Power W(kw) UNITS_KILOWATTS UNITS_DEGREES_CELS AV50 R IGBT temper...

Page 7 Object R/W Object Name Object Description Number BV0 RW ACTIVE CMD (0)Freq Cmd=0;(1)Freq Cmd=Freq Ref Value BV1 RW FWD/REV CMD (0)Forward; (1)Reverse BV2 RW Reserved Reserved BV3 RW HALT CMD (0)None;(...

Page 8 BV30 R Reserved Reserved BV31 R Reserved Reserved Device Object DEVICE10 是预设的 Device Object，可以在 CP2000 内重新定义。 V1.00 Revision April, 2015 37

Manual Details

Brand	Delta
Pages	8
File Size	256.77 KB
Published	June 06, 2026

16 views

Enter the captcha to get the download link:

Frequently Asked Questions

如何设置HMI的站号？

虽然文档未明确说明设置手順，但指出站号必须在0～127之间。

哪个对象可用于读取和写入（R/W）实时控制命令或状态？

Analog Value (AV0~AV26) 和 Binary Value (BV0~BV15) 的 Property 'Present value' 为可读写。

哪些地址的“Présent valeur”是只读（Read Only）的？

AV27~AV68 和 BV16~BV31 的 property 'Present value' 是只读的。
