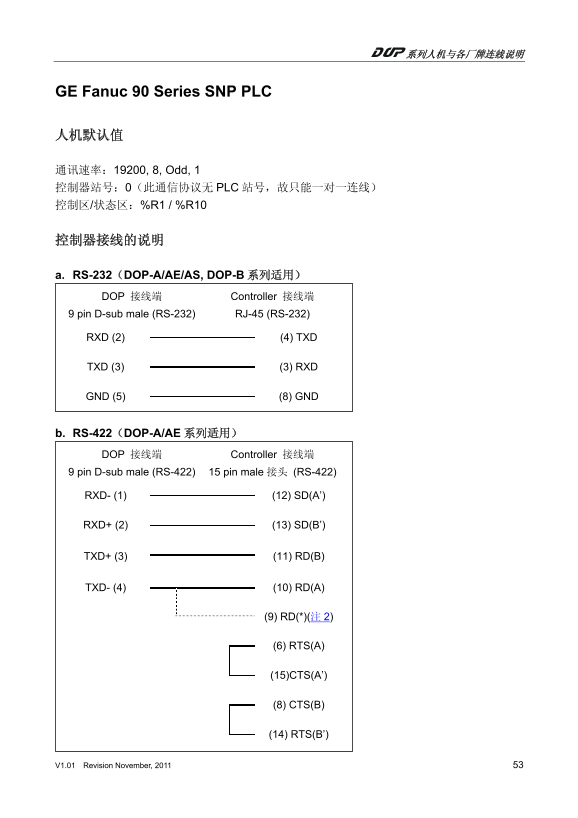

GE Fanuc 90 Series SNP PLC
通讯速率：19200, 8, Odd, 1 控制器站号：0（此通信协议无 PLC 站号，故只能一对一连线） 控制区/状态区：%R1 / %R10
a. RS-232（DOP-A/AE/AS, DOP-B 系列适用） DOP 接线端 Controller 接线端 9 pin D-sub male (RS-232) RJ-45 (RS-232)
RXD (2) (4) TXD
TXD (3) (3) RXD
GND (5) (8) GND
b. RS-422（DOP-A/AE 系列适用） DOP 接线端 Controller 接线端 9 pin D-sub male (RS-422) 15 pin male 接头 (RS-422)
RXD- (1) (12) SD(A’)
RXD+ (2) (13) SD(B’)
TXD+ (3) (11) RD(B)
TXD- (4) (10) RD(A)
(9) RD(*)(注 2)
(6) RTS(A)
(15)CTS(A’)
(8) CTS(B)
(14) RTS(B’)
