D-Link DSL- G684T Quick Installation Guide
Summary
Optimize your home network with this Wireless ADSL Router, designed for reliable high-speed internet sharing from your ISP. This comprehensive manual guides new users through every step of setup, ensuring a seamless connection. Learn how to physically connect the router, utilize the intuitive Setup Wizard via a web browser (192.168.1.1), and properly configure both time zone settings and necessary computer IP settings for optimal performance. Essential reading for anyone setting up their first ADSL internet service.

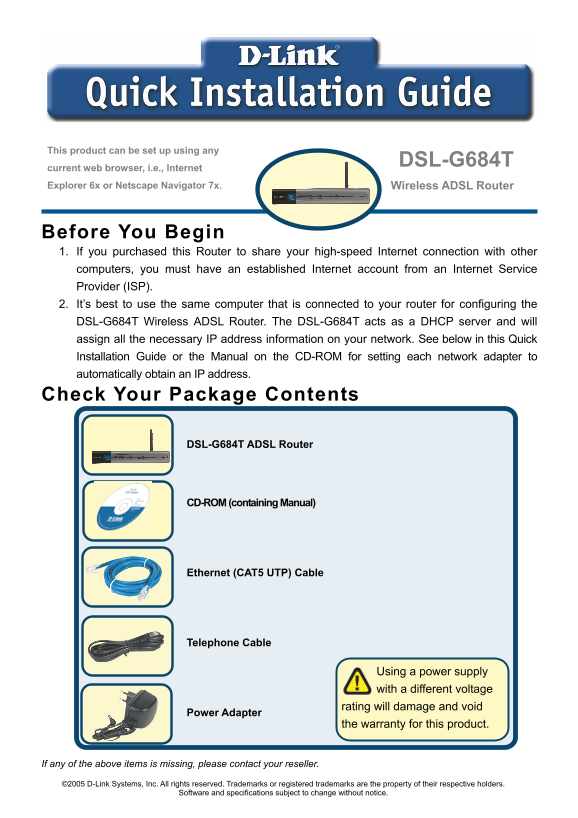

Page 1 Text Content
This product can be set up using any
DSL-G684T
current web browser, i.e., Internet Explorer 6x or Netscape Navigator 7x. Wireless ADSL Router
Before You Begin 1. If you purchased this Router to share your high-speed Internet connection with other computers, you must have an established Internet account from an Internet Service Provider (ISP). 2. It’s best to use the same computer that is connected to your router for configuring the DSL-G684T Wireless ADSL Router. The DSL-G684T acts as a DHCP server and will assign all the necessary IP address information on your network. See below in this Quick Installation Guide or the Manual on the CD-ROM for setting each network adapter to automatically obtain an IP address. Check Your Package Contents
DSL-G684T ADSL Router
CD-ROM (containing Manual)
Ethernet (CAT5 UTP) Cable
Telephone Cable
Using a power supply
with a different voltage rating will damage and void
Power Adapter
the warranty for this product.
If any of the above items is missing, please contact your reseller. ©2005 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders.
Software and specifications subject to change without notice.
Page Summary Contents For D-Link DSL- G684T Quick Installation Guide
Manual Details
| Brand | D-Link |
|---|---|
| Pages | 13 |
| File Size | 2.91 MB |
| Published | May 28, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the physical steps to connect the DSL-G684T router?
Connect power adapter, insert ADSL line into the ADSL port, and run an Ethernet cable from a LAN port to your computer's adapter.
How do I access the router's web setup page for configuration?
Open a web browser and type "http://192.168.1.1" into the URL box. Use 'admin' as the Username and '0000' as the Password.
If I use a Web browser method, what must my computer be configured to do?
Your computer must change its IP network settings to automatically obtain an IP address (a DHCP Client) for the router’s server functionality to work.
Where can I find advanced configuration options after initial setup?
For additional settings or information, refer to the Advanced, Tools, or Status tabs on the web-management interface, or check the manual on the CD-ROM.
