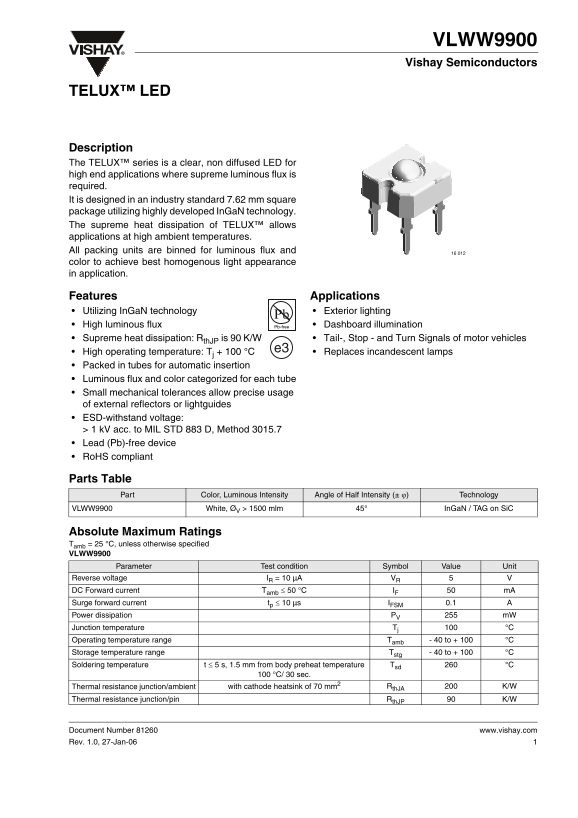

Vishay VLWW9900 Manual

VLWW9900 Vishay Semiconductors

TELUX™ LED

Description The TELUX™ series is a clear, non diffused LED for high end applications where supreme luminous flux is required. It is designed in an industry standard 7.62 mm square package utilizing highly developed In Ga N technology. The supreme heat dissipation of TELUX™ allows applications at high ambient temperatures. All packing units are binned for luminous flux and color to achieve best homogenous light appearance in application.

Features Applications Utilizing In Ga N technology Exterior lighting High luminous flux Dashboard illumination Supreme heat dissipation: Rth JP is 90 K/W Tail-, Stop - and Turn Signals of motor vehicles

e3 High operating temperature: Tj + 100 °C Replaces incandescent lamps

Packed in tubes for automatic insertion Luminous flux and color categorized for each tube Small mechanical tolerances allow precise usage of external reflectors or lightguides ESD-withstand voltage: > 1 k V acc. to MIL STD 883 D, Method 3015.7 Lead (Pb)-free device Ro HS compliant

Parts Table

Part Color, Luminous Intensity Angle of Half Intensity (± ϕ) Technology

VLWW9900 White, ØV > 1500 mlm 45° In Ga N / TAG on Si C

Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified VLWW9900

Parameter Test condition Symbol Value Unit

Reverse voltage IR = 10 µA VR

DC Forward current Tamb ≤ 50 °C IF m A

Surge forward current tp ≤ 10 µs IFSM 0.1

Power dissipation PV m W

Junction temperature Tj °C Operating temperature range Tamb - 40 to + 100 °C

Storage temperature range Tstg - 40 to + 100 °C

Soldering temperature t ≤ 5 s, 1.5 mm from body preheat temperature Tsd °C

°C/ 30 sec.

Thermal resistance junction/ambient with cathode heatsink of 70 mm2 Rth JA K/W

Thermal resistance junction/pin Rth JP K/W

Document Number 81260 www.vishay.com Rev. 1.0, 27-Jan-06
