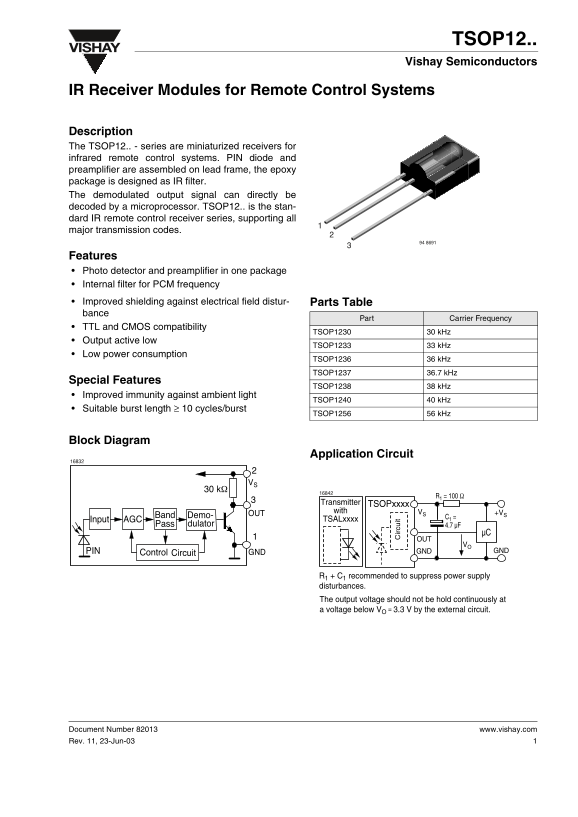

Page 1 Text Content
TSOP12..
VISHAY
Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
Description The TSOP12.. - series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. TSOP12.. is the stan- dard IR remote control receiver series, supporting all major transmission codes.
Features Photo detector and preamplifier in one package Internal filter for PCM frequency Improved shielding against electrical field distur- Parts Table bance
Part Carrier Frequency
TTL and CMOS compatibility
TSOP1230 30 k Hz
Output active low
TSOP1233 33 k Hz
Low power consumption
TSOP1236 36 k Hz
TSOP1237 36.7 k Hz
Special Features
TSOP1238 38 k Hz
Improved immunity against ambient light
ir cu it
TSOP1240 40 k Hz
Suitable burst length ≥ 10 cycles/burst
TSOP1256 56 k Hz
Block Diagram
Application Circuit
Transmitter TSOPxxxx with VS +VS
Band OUTDemo-
AGCInput TSALxxxx
Pass dulator 4.7 µF
PIN GND GND GND
Control Circuit
R1 C1 recommended to suppress power supply disturbances. The output voltage should not be hold continuously at voltage below VO 3.3 by the external circuit.
Document Number 82013 www.vishay.com Rev. 11, 23-Jun-03
Page Summary Contents For Vishay TSOP12.. User Manual
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 7 |
| File Size | 240.63 KB |
| Published | May 30, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the required operating voltage range for this receiver module?
The absolute maximum rating specifies that the supply voltage (Pin 2) must fall between -0.3 V and +6.0 V.
Can I use this for high-frequency environments like daylit areas?
Yes, although ambient light interference is possible, the product details graphs help analyze sensitivity under various irradiance levels.
What frequencies are available in the TSOP12 series?
Available models cover several discrete frequency bands, including 30 kHz, 33 kHz, 36 kHz, and up to 56 kHz.
Am I responsible for validating its use in my specific project?
Yes, all operating parameters must be validated for each customer application by the customer.
