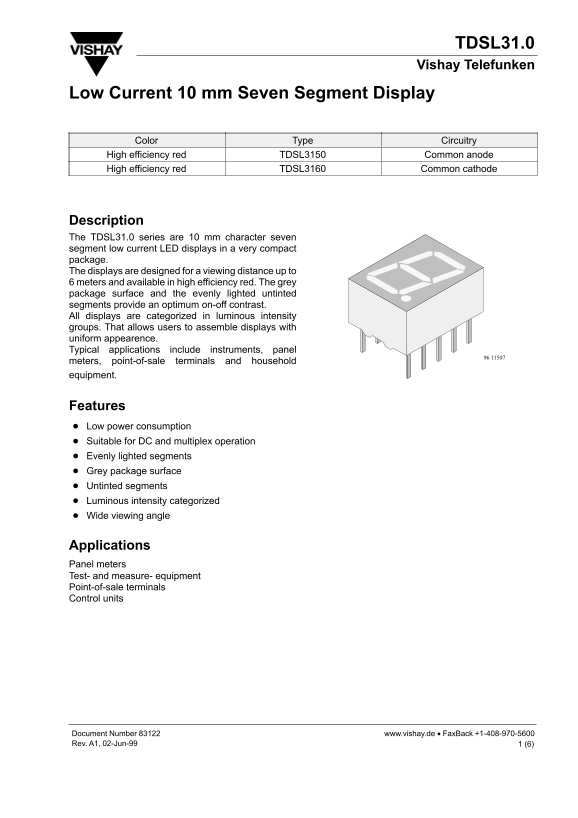

TDSL31.0 Vishay Telefunken
Low Current 10 mm Seven Segment Display
Color Type Circuitry High efficiency red TDSL3150 Common anode High efficiency red TDSL3160 Common cathode
Description The TDSL31.0 series are 10 mm character seven segment low current LED displays in a very compact package. The displays are designed for a viewing distance up to 6 meters and available in high efficiency red. The grey package surface and the evenly lighted untinted segments provide an optimum on-off contrast. All displays are categorized in luminous intensity groups. That allows users to assemble displays with uniform appearence. Typical applications include instruments, panel
meters, point-of-sale terminals and household equipment.
Features Low power consumption Suitable for DC and multiplex operation Evenly lighted segments Grey package surface Untinted segments Luminous intensity categorized Wide viewing angle
Applications Panel meters Test- and measure- equipment Point-of-sale terminals Control units
www.vishay.de • Fax Back +1-408-970-5600Document Number 83122
1 (6)Rev. A1, 02-Jun-99
