Vishay Si9183 Data Sheet - Handbook/Manual

Summary

This datasheet provides comprehensive technical specifications and application guidelines for the Si9183, a high-performance, low dropout (LDO) CMOS voltage regulator. Ideal for designers of portable electronics—such as cellular phones, PDAs, and notebooks—this component ensures reliable power management through its ultra-low noise profile, compact SOT-23 design, and powerful features like superior transient response and minimal shutdown current draw. The manual details various fixed and adjustable output options to meet diverse power requirements in battery-powered systems.

📄 Preview PAGE OF 11

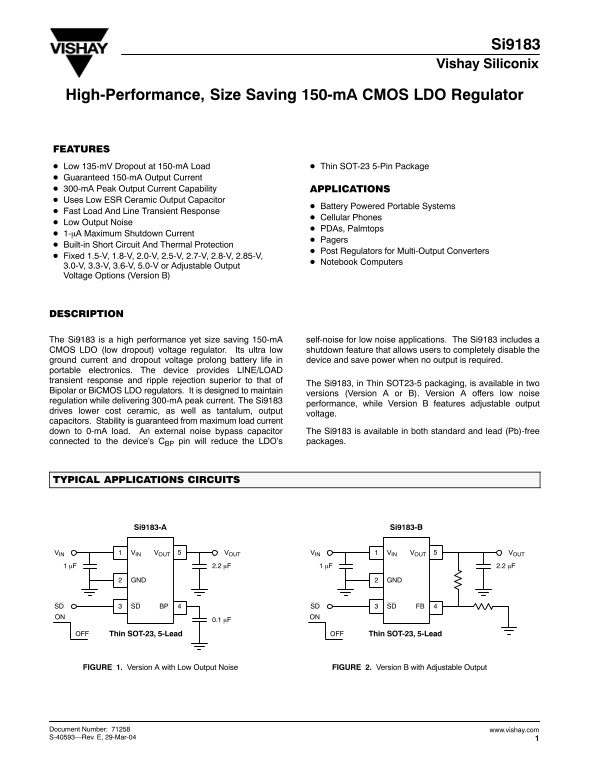

Page 1 Text Content

Si9183 Vishay Siliconix

High-Performance, Size Saving 150-m A CMOS LDO Regulator

FEATURES Low 135-m V Dropout at 150-m A Load Thin SOT-23 5-Pin Package Guaranteed 150-m A Output Current 300-m A Peak Output Current Capability APPLICATIONS Uses Low ESR Ceramic Output Capacitor

Battery Powered Portable Systems

Fast Load And Line Transient Response

Cellular Phones

Low Output Noise

PDAs, Palmtops

1-A Maximum Shutdown Current

Pagers

Built-in Short Circuit And Thermal Protection

Post Regulators for Multi-Output Converters

Fixed 1.5-V, 1.8-V, 2.0-V, 2.5-V, 2.7-V, 2.8-V, 2.85-V,

Notebook Computers

3.0-V, 3.3-V, 3.6-V, 5.0-V or Adjustable Output Voltage Options (Version B)

DESCRIPTION

The Si9183 is a high performance yet size saving 150-m A self-noise for low noise applications. The Si9183 includes a CMOS LDO (low dropout) voltage regulator. Its ultra low shutdown feature that allows users to completely disable the ground current and dropout voltage prolong battery life in device and save power when no output is required. portable electronics. The device provides LINE/LOAD transient response and ripple rejection superior to that of

The Si9183, in Thin SOT23-5 packaging, is available in two

Bipolar or Bi CMOS LDO regulators. It is designed to maintain

versions (Version A or B). Version A offers low noise

regulation while delivering 300-m A peak current. The Si9183

performance, while Version B features adjustable output

drives lower cost ceramic, as well as tantalum, output

voltage.

capacitors. Stability is guaranteed from maximum load current down to 0-m A load. An external noise bypass capacitor The Si9183 is available in both standard and lead (Pb)-free connected to the device’s CBP pin will reduce the LDO’s packages.

TYPICAL APPLICATIONS CIRCUITS

Si9183-A Si9183-B

VIN VOUT 5VIN VOUT VIN VOUT 5VIN VOUT

GND GND

SD SD BP SD SD FB ON ON

OFF Thin SOT-23, 5-Lead OFF Thin SOT-23, 5-Lead

FIGURE 1. Version A with Low Output Noise FIGURE 2. Version B with Adjustable Output

Document Number: 71258 www.vishay.com S-40593—Rev. E, 29-Mar-04

Page Summary Contents For Vishay Si9183 Data Sheet - Handbook/Manual

Page 1 Si9183 Vishay Siliconix High-Performance, Size Saving 150-m A CMOS LDO Regulator FEATURES Low 135-m V Dropout at 150-m A Load Thin SOT-23 5-Pin Package Guaranteed 150-m A Output Current 300-m A Peak O...
Page 2 Si9183 Vishay Siliconix ABSOLUTE MAXIMUM RATINGS Input Voltage, VIN 6.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power Dissipation (Package)a, b SD Inpu...
Page 3 Si9183 Vishay Siliconix SPECIFICATIONS (TA = 25C) Test Conditions Limits Unless Otherwise Specified −40 to 85C VIN = VOUT(nom) + 1 V, IOUT = 1 m A CIN = 1 F, COUT = 2.2 F, VSD = 1.5 VParameter Uni...
Page 4 Si9183 Vishay Siliconix TIMING WAVEFORMS 0.95 VNOM VOUT FIGURE 3. Timing Diagram for Power-Up PIN CONFIGURATION Thin SOT-23, 5-Pin 5VIN VOUT BP (Version A) FB (Version B) PIN DESCRIPTION Pin Number Na...
Page 5 Si9183 Vishay Siliconix ORDERING INFORMATION Lead (Pb)-Free Part Number Part Number Marking Voltage Temperature Range Package Si9183DT-15-T1 Si9183DT-15-T1—E3 A1LL 1.5 V Si9183DT-18-T1 Si9183DT-18-T1—...
Page 6 Si9183 Vishay Siliconix ut pu t V ol ta ge TYPICAL CHARACTERISTICS (INTERNALLY REGULATED, 25C UNLESS NOTED) Normalized Output Voltage vs. Load Current Normalized VOUT vs. Temperature VIN = VOUT(nom) ...
Page 7 Si9183 Vishay Siliconix TYPICAL CHARACTERISTICS (INTERNALLY REGULATED, 25C UNLESS NOTED) ISC vs. Temperature Power Supply Rejection 0.75 VOUT = 2.5 V CIN = 1 F COUT = 2.2 F 0.65 ILOAD = 150 m A Amb...
Page 8 Si9183 Vishay Siliconix TYPICAL WAVEFORMS Load Transient Response-1 Load Transient Response-2 VOUT 10 m V/div VOUT 10 m V/div ILOAD 100 m A/div ILOAD 100 m A/div VOUT = 3.0 V VOUT = 3.0 V COUT = 2.2 ...
Page 9 Si9183 Vishay Siliconix BLOCK DIAGRAMS Switches shown for device in normal operating mode (SD = HIGH) VIN CIN 1.0 F 6 M COUT 1.215 V VREF− FIGURE 4. 150-m A CMOS LDO Regulator (Fixed Output) VIN CIN ...
Page 10 Si9183 Vishay Siliconix DETAILED DESCRIPTION The Si9183 is a low drop out, low quiescent current, linear GND regulator family with very fast transient response. It is primarily designed for battery po...
Page 11 WWW.ALLDATASHEET.COM Copyright © Each Manufacturing Company. All Datasheets cannot be modified without permission. This datasheet has been download from : www.All Data Sheet.com 100% Free Data Sheet S...

Manual Details

Brand Vishay
Pages 11
File Size 135.94 KB
Published June 01, 2026
47 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

How do I minimize output noise when using this regulator?

For low noise applications, connect a high frequency ceramic X5R or X7R dielectric type to the output capacitor.

What is the current draw during shutdown mode?

During shutdown mode, the Si9183 will draw less than 1-µA current from the source.

Are there requirements for adjusting the output voltage?

Yes, an adjustable version requires connecting a 1.0-µF or larger ceramic capacitor to the ADJ pin.
