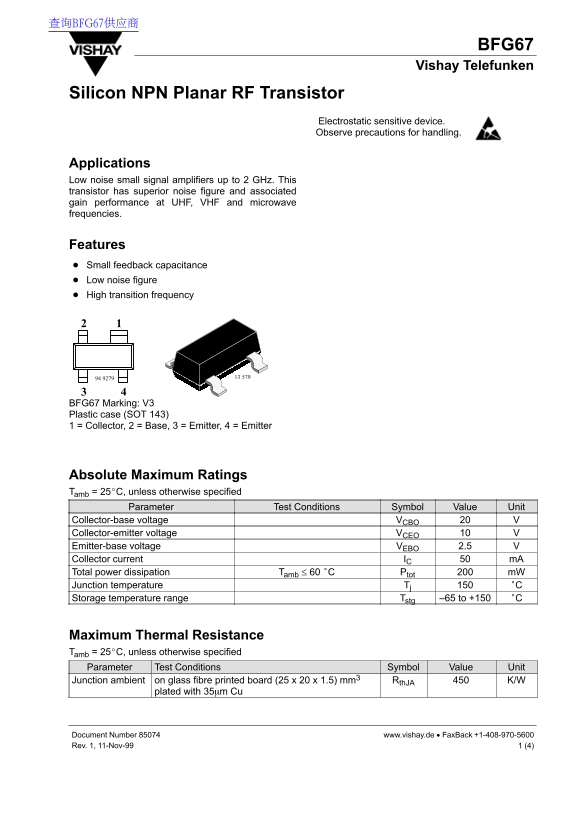

BFG67 Vishay Telefunken
Silicon NPN Planar RF Transistor
Electrostatic sensitive device. Observe precautions for handling.
Applications Low noise small signal amplifiers up to 2 GHz. This transistor has superior noise figure and associated gain performance at UHF, VHF and microwave frequencies.
Features Small feedback capacitance Low noise figure High transition frequency
BFG67 Marking: V3 Plastic case (SOT 143) 1 = Collector, 2 = Base, 3 = Emitter, 4 = Emitter
Absolute Maximum Ratings Tamb = 25C, unless otherwise specified
Parameter Test Conditions Symbol Value Unit
Collector-base voltage VCBO Collector-emitter voltage VCEO Emitter-base voltage VEBO 2.5 Collector current IC m A Total power dissipation Tamb ≤ 60 C Ptot m W Junction temperature Tj Storage temperature range Tstg –65 to +150
Maximum Thermal Resistance Tamb = 25C, unless otherwise specified Parameter Test Conditions Symbol Value Unit Junction ambient on glass fibre printed board (25 x 20 x 1.5) mm3 Rth JA K/W
plated with 35m Cu
Document Number 85074 www.vishay.de • Fax Back +1-408-970-5600 Rev. 1, 11-Nov-99 1 (4)
