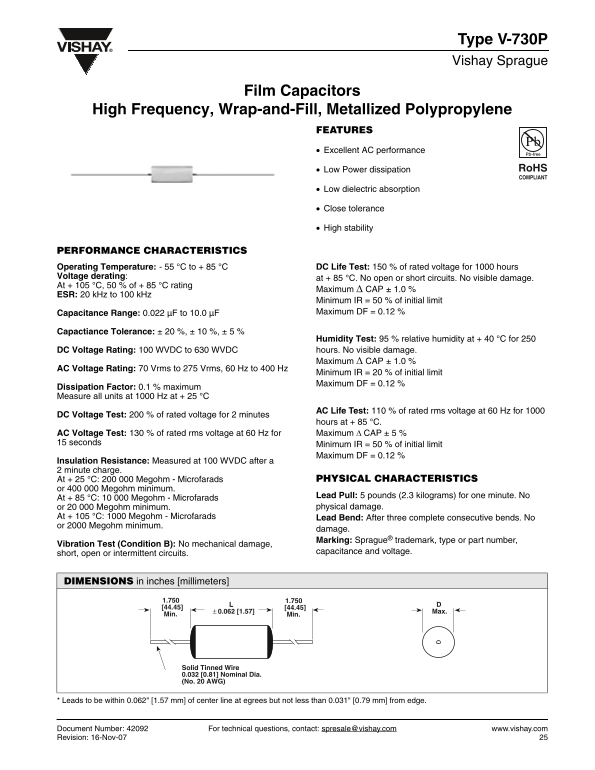

Vishay V-730P Data Handbook
Summary
The V-730P is a high-performance metallized polypropylene film capacitor, engineered by Vishay Sprague for demanding electronic applications requiring excellent AC stability and low dielectric absorption. This detailed technical manual provides engineers and designers with comprehensive specifications, including operational parameters across various temperatures, precise ESR measurements, ripple current ratings, physical dimensions, and extensive reliability testing data. It is the essential resource for selecting robust, reliable capacitance components for industrial power and high-frequency circuit designs.
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 4 |
| File Size | 173.80 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What operating temperature range is suitable for these capacitors?
The operational temperature range is -55 °C to +85 °C.
How do I calculate the necessary capacitance value or tolerance?
To specify ±20 % tolerance, change 'X9' in the Part Number to 'X0'; for ±5 %, change it to 'X5'.
What are the specifications for an AC Life Test at 60 Hz?
The capacitors must pass an AC Life Test of 110 % of rated rms voltage at 60 Hz for 1000 hours.
Can these capacitors withstand repeated flexing or handling?
Lead pull testing requires withstanding 5 pounds (2.3 kilograms) for one minute; lead bend must survive three complete consecutive bends.
