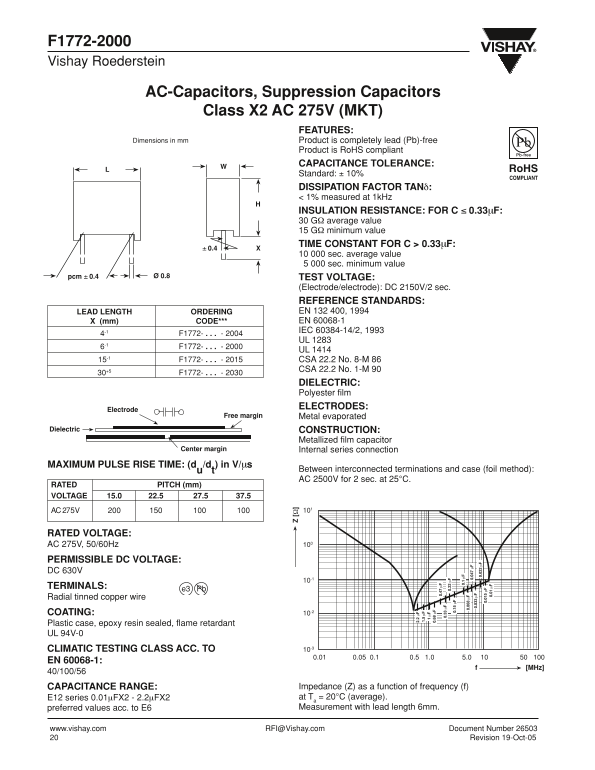

Page 1 Text Content
F1772-2000 Vishay Roederstein
AC-Capacitors, Suppression Capacitors Class X2 AC 275V (MKT)
FEATURES:
Dimensions in mm Product is completely lead (Pb)-free
Product is Ro HS compliant CAPACITANCE TOLERANCE:
Ro HS
Standard: ± 10%
COMPLIANT
DISSIPATION FACTOR TANδ: < 1% measured at 1k Hz INSULATION RESISTANCE: FOR C ≤ 0.33µF: 30 GΩ average value 15 GΩ minimum value TIME CONSTANT FOR C > 0.33µF:
10 000 sec. average value 5 000 sec. minimum value
pcm ± 0.4 Ø 0.8 TEST VOLTAGE:
(Electrode/electrode): DC 2150V/2 sec. REFERENCE STANDARDS: LEAD LENGTH ORDERING EN 132 400, 1994 X (mm) CODE*** EN 60068-1 IEC 60384-14/2, 1993
UL 1283
UL 1414
15-1 F1772- . . . - 2015 CSA 22.2 No. 8-M 86
CSA 22.2 No. 1-M 90
DIELECTRIC: Polyester film ELECTRODES:
Electrode
2. Free margin Metal evaporated
Dielectric CONSTRUCTION:
0. Metallized film capacitor 0. 0. Center margin Internal series connection 0. 0.
MAXIMUM PULSE RISE TIME: (du/dt) in V/µs 0.
0. Between interconnected terminations and case (foil method):
0. AC 2500V for 2 sec. at 25°C.
RATED PITCH (mm) 0. 0.
VOLTAGE 15.0 22.5 27.5 37.5 AC 275V
RATED VOLTAGE: AC 275V, 50/60Hz PERMISSIBLE DC VOLTAGE: DC 630V
TERMINALS:
e3 Pb
Radial tinned copper wire COATING: 10-2 Plastic case, epoxy resin sealed, flame retardant UL 94V-0 CLIMATIC TESTING CLASS ACC. TO 10-3
EN 60068-1:
[MHz]
CAPACITANCE RANGE: Impedance (Z) as a function of frequency (f) E12 series 0.01µFX2 - 2.2µFX2 at Ta = 20°C (average). preferred values acc. to E6 Measurement with lead length 6mm.
www.vishay.com [email protected] Document Number 26503
Revision 19-Oct-05
