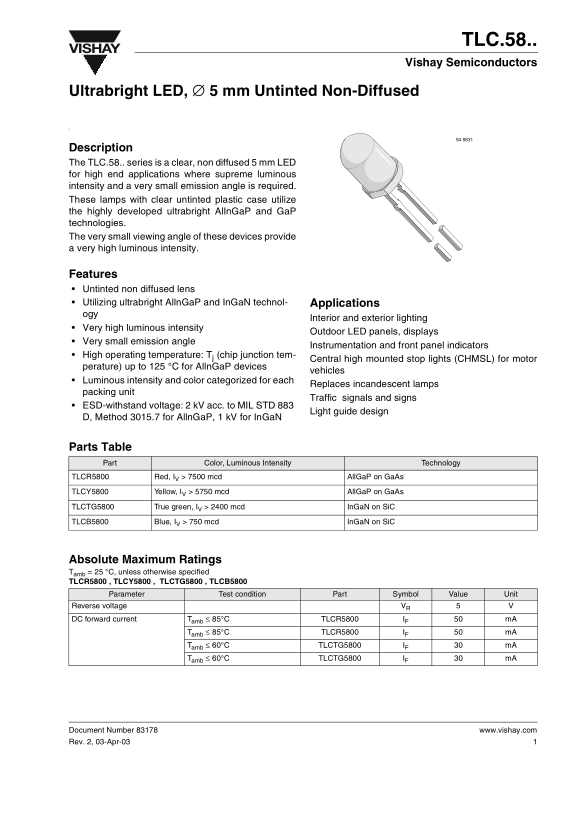

TLC.58..
VISHAY
Vishay Semiconductors
Ultrabright LED, ∅ 5 mm Untinted Non-Diffused
Description The TLC.58.. series is a clear, non diffused 5 mm LED for high end applications where supreme luminous intensity and a very small emission angle is required. These lamps with clear untinted plastic case utilize the highly developed ultrabright Al In Ga P and Ga P technologies. The very small viewing angle of these devices provide a very high luminous intensity.
Features Untinted non diffused lens Utilizing ultrabright Alln Ga P and In Ga N technol- Applications ogy
Interior and exterior lighting
Very high luminous intensity
Outdoor LED panels, displays
Very small emission angle
Instrumentation and front panel indicators
High operating temperature: Tj (chip junction tem-
Central high mounted stop lights (CHMSL) for motor
perature) up to 125 °C for Alln Ga P devices
vehicles
Luminous intensity and color categorized for each
Replaces incandescent lamps
packing unit
Traffic signals and signs
ESD-withstand voltage: 2 k V acc. to MIL STD 883
Light guide design
D, Method 3015.7 for Alln Ga P, 1 k V for In Ga N
Parts Table Part Color, Luminous Intensity Technology TLCR5800 Red, IV > 7500 mcd All Ga P on Ga As TLCY5800 Yellow, IV > 5750 mcd All Ga P on Ga As
TLCTG5800 True green, IV > 2400 mcd In Ga N on Si C
TLCB5800 Blue, IV > 750 mcd In Ga N on Si C
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified TLCR5800 , TLCY5800 , TLCTG5800 , TLCB5800
Parameter Test condition Part Symbol Value Unit
Reverse voltage VR DC forward current Tamb ≤ 85°C TLCR5800 IF m A
Tamb ≤ 85°C TLCR5800 IF m A Tamb ≤ 60°C TLCTG5800 IF m A Tamb ≤ 60°C TLCTG5800 IF m A
Document Number 83178 www.vishay.com Rev. 2, 03-Apr-03
