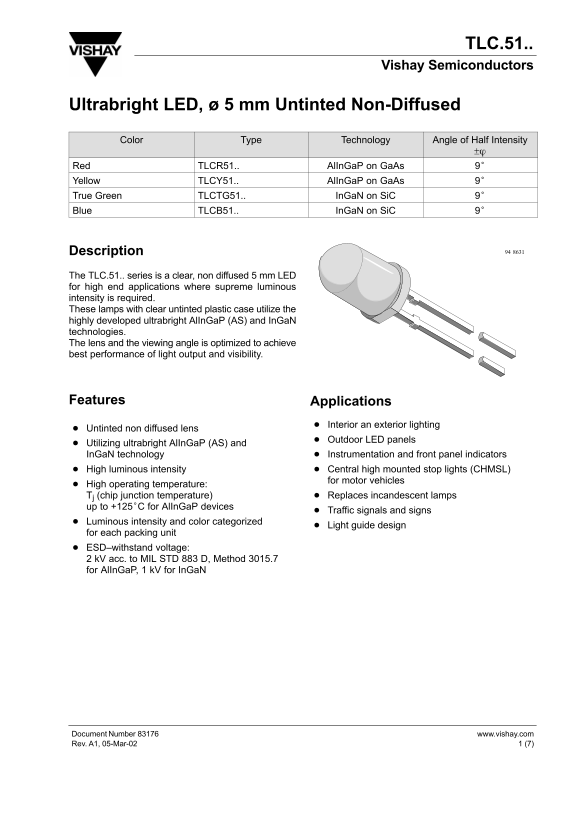

TLC.51..
Vishay Semiconductors
Ultrabright LED, ø 5 mm Untinted Non-Diffused Color Type Technology Angle of Half Intensity
Red TLCR51.. Al In Ga P on Ga As 9° Yellow TLCY51.. Al In Ga P on Ga As 9° True Green TLCTG51.. In Ga N on Si C 9° Blue TLCB51.. In Ga N on Si C 9°
Description 94 8631
The TLC.51.. series is a clear, non diffused 5 mm LED for high end applications where supreme luminous intensity is required. These lamps with clear untinted plastic case utilize the highly developed ultrabright Al In Ga P (AS) and In Ga N technologies. The lens and the viewing angle is optimized to achieve best performance of light output and visibility.
Features Applications
Interior an exterior lighting
Untinted non diffused lens
Outdoor LED panels
Utilizing ultrabright Al In Ga P (AS) and In Ga N technology Instrumentation and front panel indicators High luminous intensity Central high mounted stop lights (CHMSL)
for motor vehicles
High operating temperature: Tj (chip junction temperature) Replaces incandescent lamps up to +125°C for Al In Ga P devices
Traffic signals and signs
Luminous intensity and color categorized
Light guide design
for each packing unit ESD–withstand voltage: 2 k V acc. to MIL STD 883 D, Method 3015.7 for Al In Ga P, 1 k V for In Ga N
