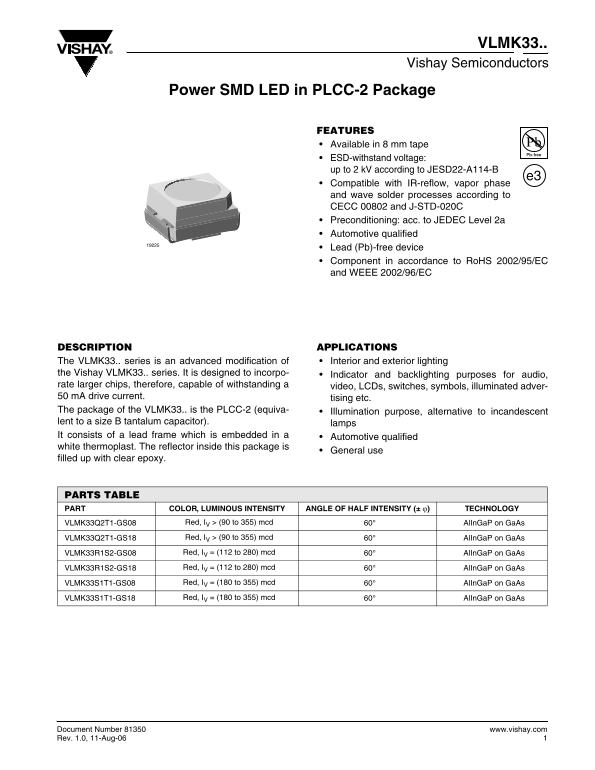

VLMK33..
Vishay Semiconductors
Power SMD LED in PLCC-2 Package
FEATURES Available in 8 mm tape ESD-withstand voltage: up to 2 k V according to JESD22-A114-B
Compatible with IR-reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020C Preconditioning: acc. to JEDEC Level 2a Automotive qualified Lead (Pb)-free device Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
DESCRIPTION APPLICATIONS The VLMK33.. series is an advanced modification of Interior and exterior lighting
the Vishay VLMK33.. series. It is designed to incorpo- Indicator and backlighting purposes for audio, rate larger chips, therefore, capable of withstanding a video, LCDs, switches, symbols, illuminated adver- 50 m A drive current. tising etc. The package of the VLMK33.. is the PLCC-2 (equiva- Illumination purpose, alternative to incandescent lent to a size B tantalum capacitor). lamps It consists of a lead frame which is embedded in a Automotive qualified white thermoplast. The reflector inside this package is
General use
filled up with clear epoxy.
PARTS TABLE PART COLOR, LUMINOUS INTENSITY ANGLE OF HALF INTENSITY (± ϕ) TECHNOLOGY
VLMK33Q2T1-GS08 Red, IV > (90 to 355) mcd 60° Al In Ga P on Ga As
VLMK33Q2T1-GS18 Red, IV > (90 to 355) mcd 60° Al In Ga P on Ga As
VLMK33R1S2-GS08 Red, IV = (112 to 280) mcd 60° Al In Ga P on Ga As
VLMK33R1S2-GS18 Red, IV = (112 to 280) mcd 60° Al In Ga P on Ga As
VLMK33S1T1-GS08 Red, IV = (180 to 355) mcd 60° Al In Ga P on Ga As
VLMK33S1T1-GS18 Red, IV = (180 to 355) mcd 60° Al In Ga P on Ga As
Document Number 81350 www.vishay.com Rev. 1.0, 11-Aug-06
