The TCND5000 is a high-performance reflective optical sensor, utilizing an integrated infrared emitter and PIN photodiode detector to accurately measure object proximity. This manual provides detailed technical specifications, including electrical characteristics (voltage, current), operating ranges, wavelength data, and mounting dimensions. Essential reading for engineers and system designers building automation, motion detection, or object sensing applications requiring reliable, industry-standard optical measurement components.
Page 1 Text Content

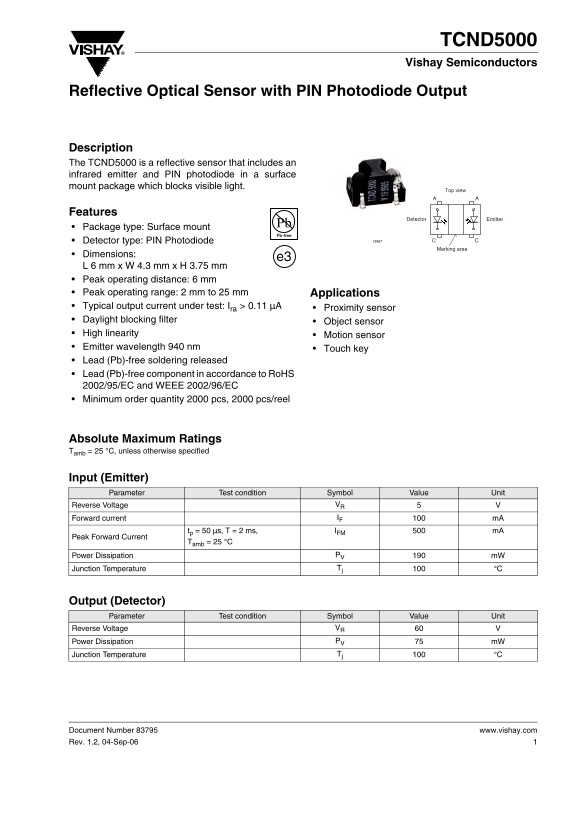

TCND5000 Vishay Semiconductors
Reflective Optical Sensor with PIN Photodiode Output
Description The TCND5000 is a reflective sensor that includes an infrared emitter and PIN photodiode in a surface mount package which blocks visible light.
Top view
Features
Detector Emitter
Package type: Surface mount Detector type: PIN Photodiode
Marking area
Dimensions:
L 6 mm x W 4.3 mm x H 3.75 mm Peak operating distance: 6 mm Peak operating range: 2 mm to 25 mm Applications Typical output current under test: Ira > 0.11 µA Proximity sensor Daylight blocking filter Object sensor High linearity Motion sensor Emitter wavelength 940 nm Touch key Lead (Pb)-free soldering released Lead (Pb)-free component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC Minimum order quantity 2000 pcs, 2000 pcs/reel
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Input (Emitter) Parameter Test condition Symbol Value Unit
Reverse Voltage VR Forward current IF m A tp = 50 µs, T = 2 ms, IFM m A
Peak Forward Current
Tamb = 25 °C
Power Dissipation PV m W Junction Temperature Tj °C
Output (Detector) Parameter Test condition Symbol Value Unit
Reverse Voltage VR Power Dissipation PV m W Junction Temperature Tj °C
Document Number 83795 www.vishay.com Rev. 1.2, 04-Sep-06
Page Summary Contents For Vishay TCND5000 Specifications and User Guide
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 10 |
| File Size | 175.42 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum operating temperature range for this sensor?
The operational ambient temperature range is from -40 to +85 °C.
How far can this sensor typically detect an object?
It has a peak operating range of 2 mm to 25 mm.
Does the sensor contain prohibited substances like lead or ozone depleting agents?
It is Lead (Pb)-free and does not contain ozone depleting substances, complying with RoHS standards.
What is the primary wavelength used by the sensor?
The peak operating wavelength of the emitter is 940 nm.
