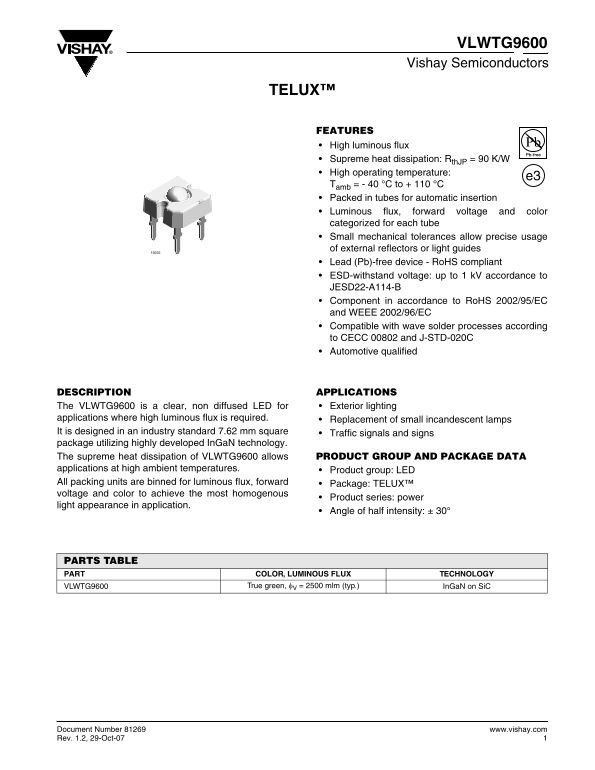

VLWTG9600 Vishay Semiconductors
TELUX™
FEATURES High luminous flux Supreme heat dissipation: Rth JP = 90 K/W High operating temperature:
Tamb = - 40 °C to + 110 °C Packed in tubes for automatic insertion Luminous flux, forward voltage and color categorized for each tube Small mechanical tolerances allow precise usage of external reflectors or light guides Lead (Pb)-free device - Ro HS compliant ESD-withstand voltage: up to 1 k V accordance to JESD22-A114-B Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC Compatible with wave solder processes according to CECC 00802 and J-STD-020C Automotive qualified
DESCRIPTION APPLICATIONS The VLWTG9600 is a clear, non diffused LED for Exterior lighting
applications where high luminous flux is required. Replacement of small incandescent lamps It is designed in an industry standard 7.62 mm square Traffic signals and signs package utilizing highly developed In Ga N technology.
The supreme heat dissipation of VLWTG9600 allows PRODUCT GROUP AND PACKAGE DATA
applications at high ambient temperatures. Product group: LED All packing units are binned for luminous flux, forward Package: TELUX™ voltage and color to achieve the most homogenous
Product series: power
light appearance in application.
Angle of half intensity: ± 30°
PARTS TABLE PART COLOR, LUMINOUS FLUX TECHNOLOGY
VLWTG9600 True green, φV = 2500 mlm (typ.) In Ga N on Si C
