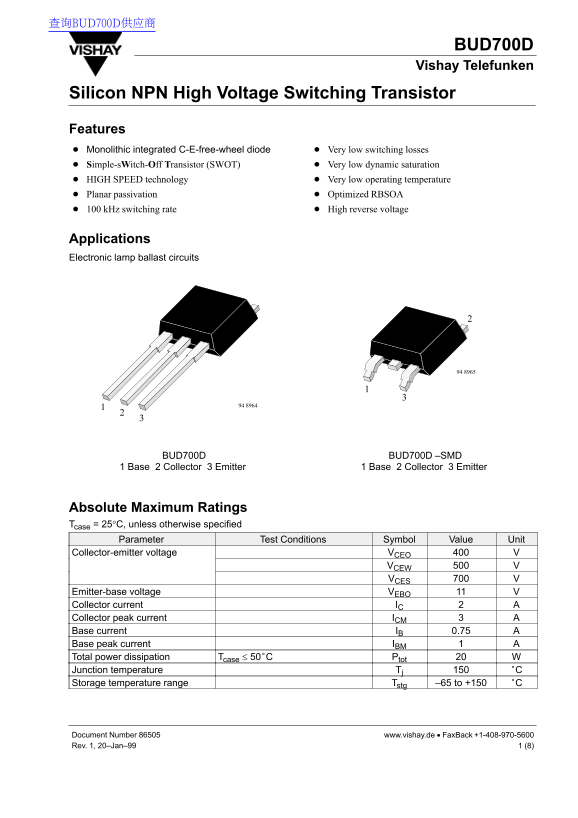

BUD700D Vishay Telefunken
Silicon NPN High Voltage Switching Transistor Features Monolithic integrated C-E-free-wheel diode Very low switching losses Simple-s Witch-Off Transistor (SWOT) Very low dynamic saturation HIGH SPEED technology Very low operating temperature Planar passivation Optimized RBSOA 100 k Hz switching rate High reverse voltage
Applications Electronic lamp ballast circuits
BUD700D BUD700D –SMD
1 Base 2 Collector 3 Emitter 1 Base 2 Collector 3 Emitter
Absolute Maximum Ratings Tcase = 25°C, unless otherwise specified
Parameter Test Conditions Symbol Value Unit
Collector-emitter voltage VCEO
VCEW VCES
Emitter-base voltage VEBO Collector current IC Collector peak current ICM Base current IB 0.75 Base peak current IBM Total power dissipation Tcase ≤ 50C Ptot Junction temperature Tj Storage temperature range Tstg –65 to +150
