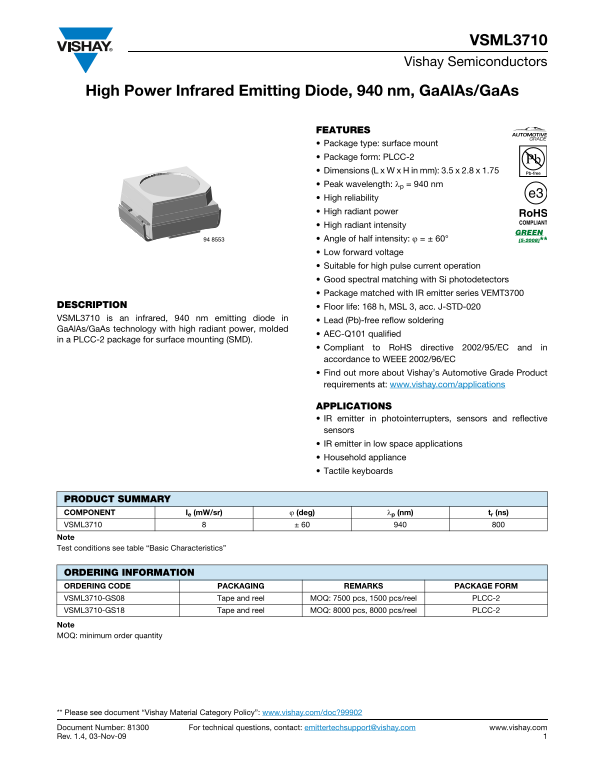

VSML3710
Vishay Semiconductors
High Power Infrared Emitting Diode, 940 nm, Ga Al As/Ga As
FEATURES Package type: surface mount Package form: PLCC-2 Dimensions (L x W x H in mm): 3.5 x 2.8 x 1.75 Peak wavelength: λp = 940 nm High reliability High radiant power High radiant intensity
94 8553 Angle of half intensity: ϕ = ± 60°
Low forward voltage Suitable for high pulse current operation Good spectral matching with Si photodetectors Package matched with IR emitter series VEMT3700
DESCRIPTION Floor life: 168 h, MSL 3, acc. J-STD-020 VSML3710 is an infrared, 940 nm emitting diode in Lead (Pb)-free reflow soldering Ga Al As/Ga As technology with high radiant power, molded
AEC-Q101 qualified
in a PLCC-2 package for surface mounting (SMD).
Compliant to Ro HS directive 2002/95/EC and in accordance to WEEE 2002/96/EC Find out more about Vishay’s Automotive Grade Product requirements at: www.vishay.com/applications
APPLICATIONS IR emitter in photointerrupters, sensors and reflective sensors IR emitter in low space applications Household appliance Tactile keyboards
PRODUCT SUMMARY COMPONENT Ie (m W/sr) ϕ (deg) λp (nm) tr (ns) VSML3710 ± 60 Note Test conditions see table “Basic Characteristics”
ORDERING INFORMATION ORDERING CODE PACKAGING REMARKS PACKAGE FORM VSML3710-GS08 Tape and reel MOQ: 7500 pcs, 1500 pcs/reel PLCC-2 VSML3710-GS18 Tape and reel MOQ: 8000 pcs, 8000 pcs/reel PLCC-2
Note MOQ: minimum order quantity
** Please see document “Vishay Material Category Policy”: www.vishay.com/doc?99902
Document Number: 81300 For technical questions, contact: [email protected] www.vishay.com
Rev. 1.4, 03-Nov-09
