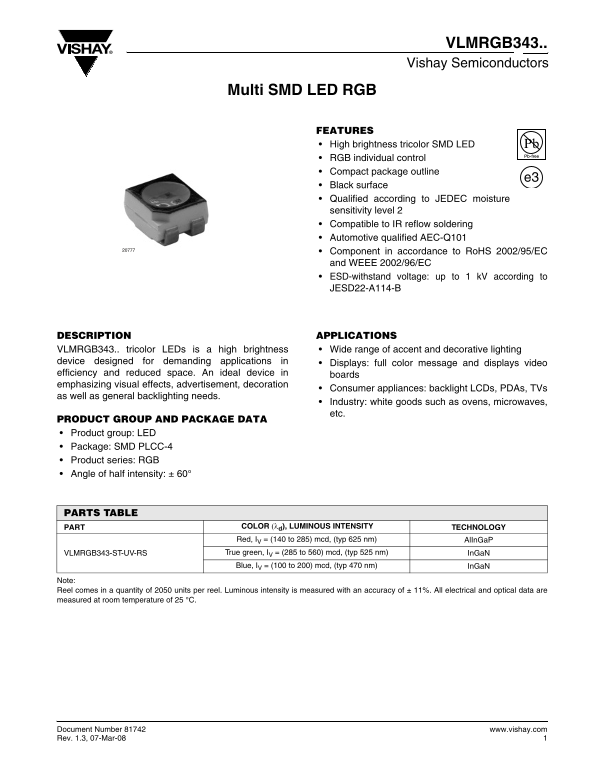

VLMRGB343.. Vishay Semiconductors
Multi SMD LED RGB
FEATURES High brightness tricolor SMD LED RGB individual control Compact package outline
Black surface Qualified according to JEDEC moisture sensitivity level 2 Compatible to IR reflow soldering Automotive qualified AEC-Q101 Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC ESD-withstand voltage: up to 1 k V according to JESD22-A114-B
DESCRIPTION APPLICATIONS VLMRGB343.. tricolor LEDs is a high brightness Wide range of accent and decorative lighting
device designed for demanding applications in Displays: full color message and displays video efficiency and reduced space. An ideal device in boards emphasizing visual effects, advertisement, decoration
Consumer appliances: backlight LCDs, PDAs, TVs
as well as general backlighting needs.
Industry: white goods such as ovens, microwaves, etc.
PRODUCT GROUP AND PACKAGE DATA Product group: LED Package: SMD PLCC-4 Product series: RGB Angle of half intensity: ± 60°
PARTS TABLE
PART COLOR (λd), LUMINOUS INTENSITY TECHNOLOGY Red, IV = (140 to 285) mcd, (typ 625 nm) Al In Ga P VLMRGB343-ST-UV-RS True green, IV = (285 to 560) mcd, (typ 525 nm) In Ga N Blue, IV = (100 to 200) mcd, (typ 470 nm) In Ga N
Note: Reel comes in a quantity of 2050 units per reel. Luminous intensity is measured with an accuracy of ± 11%. All electrical and optical data are measured at room temperature of 25 °C.
Document Number 81742 www.vishay.com Rev. 1.3, 07-Mar-08
