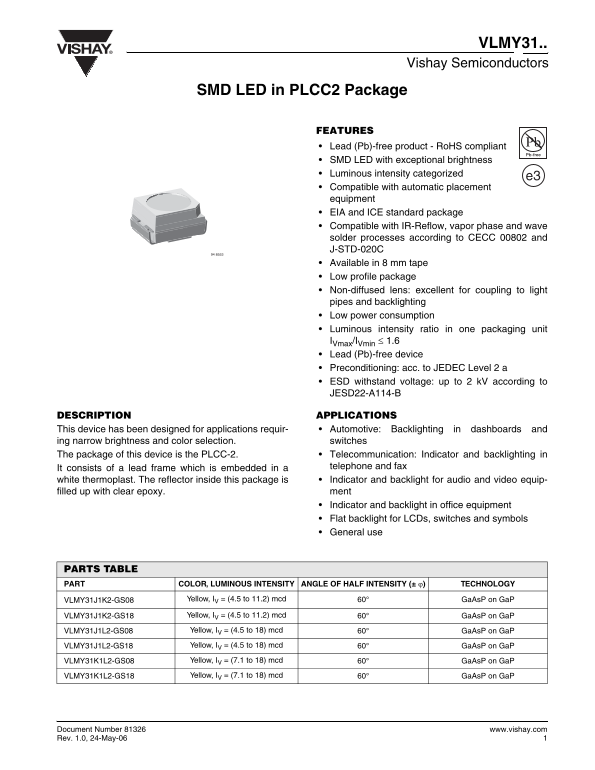

VLMY31..
Vishay Semiconductors
SMD LED in PLCC2 Package
FEATURES Lead (Pb)-free product - Ro HS compliant SMD LED with exceptional brightness Luminous intensity categorized
Compatible with automatic placement equipment EIA and ICE standard package Compatible with IR-Reflow, vapor phase and wave solder processes according to CECC 00802 and J-STD-020C Available in 8 mm tape Low profile package Non-diffused lens: excellent for coupling to light pipes and backlighting Low power consumption Luminous intensity ratio in one packaging unit IVmax/IVmin ≤ 1.6 Lead (Pb)-free device Preconditioning: acc. to JEDEC Level 2 a ESD withstand voltage: up to 2 k V according to JESD22-A114-B
DESCRIPTION APPLICATIONS This device has been designed for applications requir- Automotive: Backlighting in dashboards and ing narrow brightness and color selection. switches The package of this device is the PLCC-2. Telecommunication: Indicator and backlighting in It consists of a lead frame which is embedded in a telephone and fax white thermoplast. The reflector inside this package is Indicator and backlight for audio and video equip- filled up with clear epoxy. ment Indicator and backlight in office equipment Flat backlight for LCDs, switches and symbols General use
PARTS TABLE PART COLOR, LUMINOUS INTENSITY ANGLE OF HALF INTENSITY (± ϕ) TECHNOLOGY
VLMY31J1K2-GS08 Yellow, IV = (4.5 to 11.2) mcd 60° Ga As P on Ga P
VLMY31J1K2-GS18 Yellow, IV = (4.5 to 11.2) mcd 60° Ga As P on Ga P
VLMY31J1L2-GS08 Yellow, IV = (4.5 to 18) mcd 60° Ga As P on Ga P
VLMY31J1L2-GS18 Yellow, IV = (4.5 to 18) mcd 60° Ga As P on Ga P
VLMY31K1L2-GS08 Yellow, IV = (7.1 to 18) mcd 60° Ga As P on Ga P
VLMY31K1L2-GS18 Yellow, IV = (7.1 to 18) mcd 60° Ga As P on Ga P
