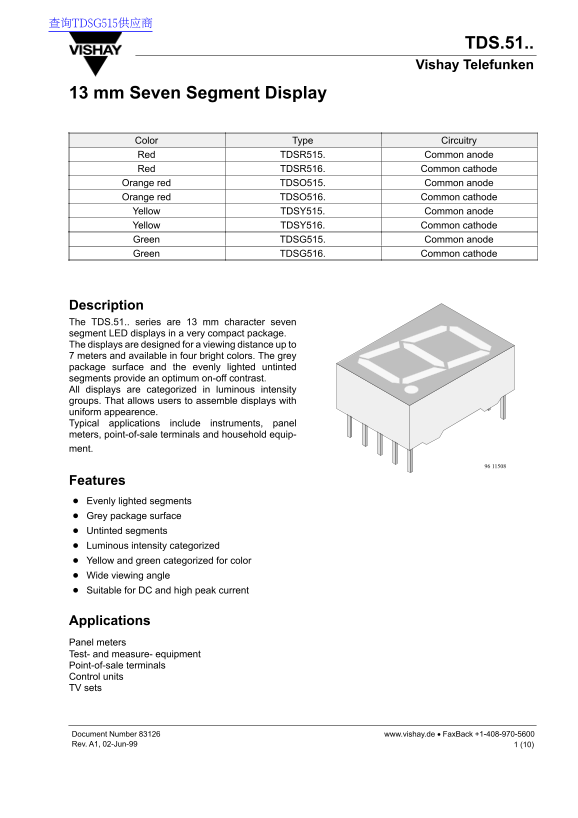

Page 1 Text Content
查询TDSG515供应商
TDS.51.. Vishay Telefunken
13 mm Seven Segment Display
Color Type Circuitry Red TDSR515. Common anode Red TDSR516. Common cathode Orange red TDSO515. Common anode Orange red TDSO516. Common cathode Yellow TDSY515. Common anode Yellow TDSY516. Common cathode Green TDSG515. Common anode Green TDSG516. Common cathode
Description The TDS.51.. series are 13 mm character seven segment LED displays in a very compact package. The displays are designed for a viewing distance up to 7 meters and available in four bright colors. The grey package surface and the evenly lighted untinted segments provide an optimum on-off contrast. All displays are categorized in luminous intensity groups. That allows users to assemble displays with uniform appearence. Typical applications include instruments, panel meters, point-of-sale terminals and household equip- ment.
Features Evenly lighted segments Grey package surface Untinted segments Luminous intensity categorized Yellow and green categorized for color Wide viewing angle Suitable for DC and high peak current
Applications Panel meters Test- and measure- equipment Point-of-sale terminals Control units TV sets
www.vishay.de • Fax Back +1-408-970-5600Document Number 83126
1 (10)Rev. A1, 02-Jun-99
