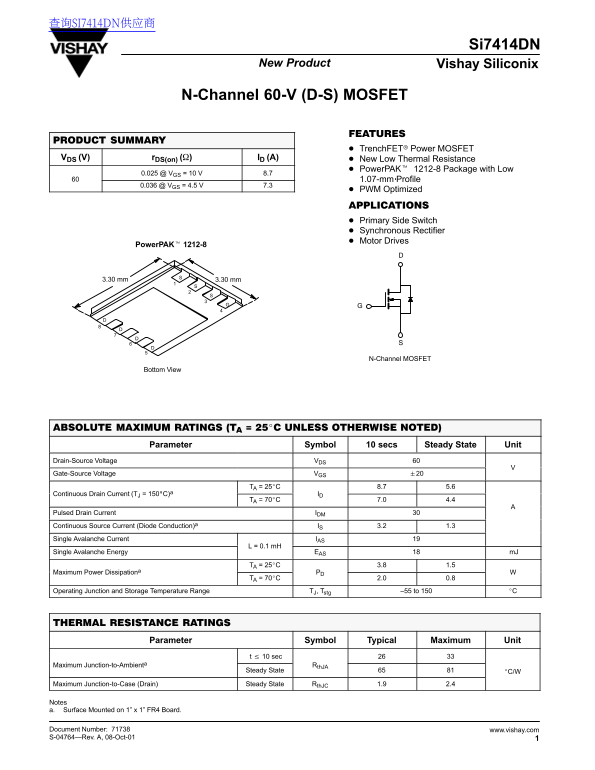

Si7414DN Vishay Siliconix New Product
N-Channel 60-V (D-S) MOSFET
Trench FET Power MOSFET
VDS (V) r DS(on) () ID (A) New Low Thermal Resistance
Power PAK 1212-8 Package with Low
0.025 @ VGS = 10 V 8.7
1.07-mm Profile
0.036 @ VGS = 4.5 V 7.3
PWM Optimized
Primary Side Switch Synchronous Rectifier Motor Drives
Power PAK 1212-8
3.30 mm 3.30 mm
N-Channel MOSFET
Bottom View
Parameter Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS Gate-Source Voltage VGS
TA = 25C 8.7 5.6
Continuous Drain Current (TJ = 150 C)a ID
TA = 70C 7.0 4.4
Pulsed Drain Current IDM Continuous Source Current (Diode Conduction)a IS 3.2 1.3 Single Avalanche Current IAS
Single Avalanche Energy EAS m J
TA = 25C 3.8 1.5
Maximum Power Dissipationa PD
TA = 70C 2.0 0.8
Operating Junction and Storage Temperature Range TJ, Tstg –55 to 150
Parameter Symbol Typical Maximum Unit
t 10 sec
Maximum Junction-to-Ambienta Rth JA
Steady State C/W
Maximum Junction-to-Case (Drain) Steady State Rth JC 1.9 2.4
Notes a. Surface Mounted on 1” x 1” FR4 Board.
