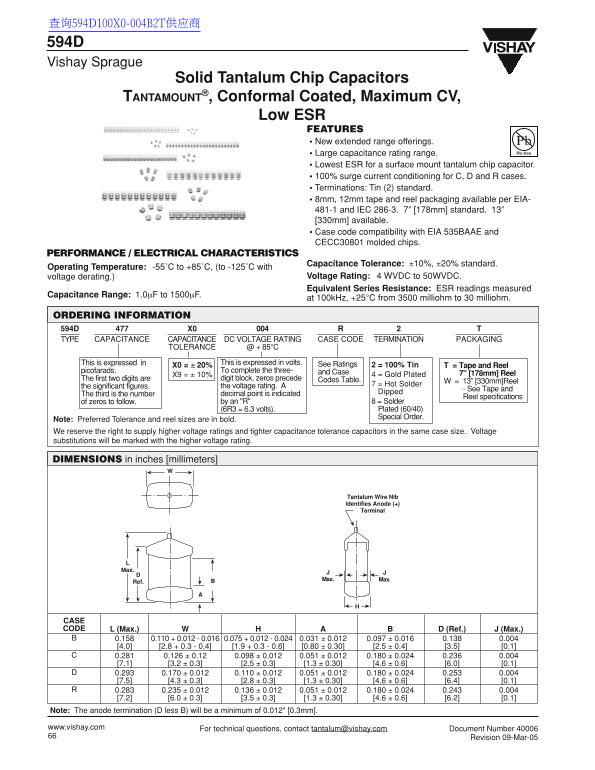

Page 1 Text Content
查询594D100X0-004B2T供应商 594D Vishay Sprague
Solid Tantalum Chip Capacitors TANTAMOUNT®, Conformal Coated, Maximum CV,
Low ESR FEATURES
New extended range offerings. Large capacitance rating range. Lowest ESR for a surface mount tantalum chip capacitor. 100% surge current conditioning for C, D and R cases. Terminations: Tin (2) standard. 8mm, 12mm tape and reel packaging available per EIA- 481-1 and IEC 286-3. 7” [178mm] standard. 13” [330mm] available. Case code compatibility with EIA 535BAAE and CECC30801 molded chips.
PERFORMANCE / ELECTRICAL CHARACTERISTICS
Capacitance Tolerance: ±10%, ±20% standard.
Operating Temperature: -55˚C to +85˚C, (to -125˚C with
voltage derating.) Voltage Rating: 4 WVDC to 50WVDC. Equivalent Series Resistance: ESR readings measured
Capacitance Range: 1.0µF to 1500µF.
at 100k Hz, +25°C from 3500 milliohm to 30 milliohm.
ORDERING INFORMATION 594D X0 TYPE CAPACITANCE CAPACITANCE DC VOLTAGE RATING CASE CODE TERMINATION PACKAGING
TOLERANCE @ + 85°C
This is expressed in This is expressed in volts. See Ratings
X0 = ± 20% 100% Tin Tape and Reel
picofarads. To complete the three- and Case
X9 = ± 10% Gold Plated 7" [178mm] Reel
The first two digits are digit block, zeros precede Codes Table.
W = 13” [330mm]Reel
the voltage rating. A Hot Solder
the significant figures.
- See Tape and
decimal point is indicated Dipped
The third is the number
Reel specifications
of zeros to follow. by an "R" 8 = Solder (6R3 = 6.3 volts). Plated (60/40) Special Order.
Note: Preferred Tolerance and reel sizes are in bold. We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size. Voltage substitutions will be marked with the higher voltage rating.
DIMENSIONS in inches [millimeters]
Tantalum Wire Nib Identifies Anode (+) Terminal
Max. Max.
CASE CODE L (Max.) D (Ref.) J (Max.)
Note: The anode termination (D less B) will be a minimum of 0.012" [0.3mm].
www.vishay.com For technical questions, contact [email protected] Document Number 40006
Revision 09-Mar-05
