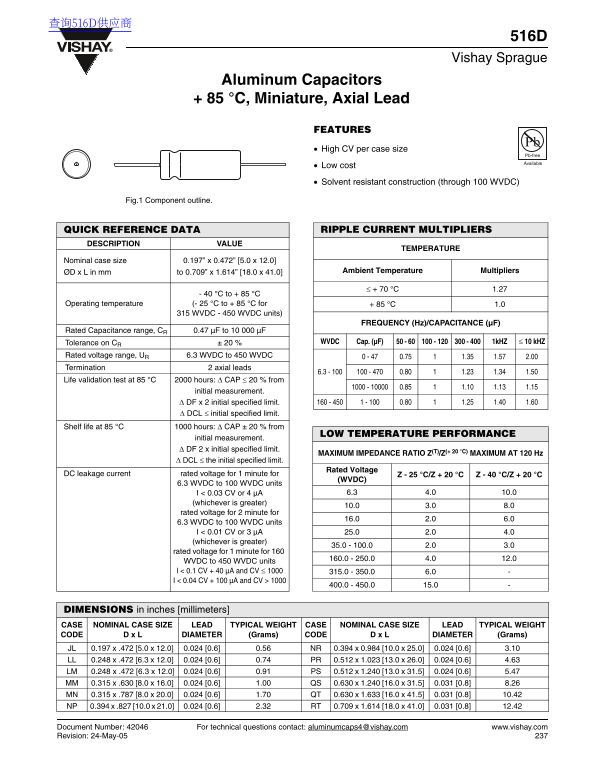

Page 1 Text Content
Vishay Sprague
Aluminum Capacitors + 85 °C, Miniature, Axial Lead
FEATURES
High CV per case size
Pb-free
Available
Low cost Solvent resistant construction (through 100 WVDC)
Fig.1 Component outline.
QUICK REFERENCE DATA RIPPLE CURRENT MULTIPLIERS
DESCRIPTION VALUE
TEMPERATURE
Nominal case size 0.197” x 0.472” [5.0 x 12.0]
ØD x L in mm to 0.709” x 1.614” [18.0 x 41.0] Ambient Temperature Multipliers
- 40 °C to + 85 °C
Operating temperature (- 25 °C to + 85 °C for + 85 °C 1.0
315 WVDC - 450 WVDC units)
FREQUENCY (Hz)/CAPACITANCE (µF)
Rated Capacitance range, CR 0.47 µF to 10 000 µF
Tolerance on CR ± 20 % WVDC Cap. (µF) 50 - 60 100 - 120 300 - 400 1k HZ ≤ 10 k HZ
Rated voltage range, UR 6.3 WVDC to 450 WVDC 0 - 47 0.75 1 1.35 1.57 2.00
Termination 2 axial leads
Life validation test at 85 °C 2000 hours: Δ CAP ≤ 20 % from
initial measurement.
Δ DF x 2 initial specified limit. 160 - 450 1 - 100 0.80 1 1.25 1.40 1.60
Δ DCL ≤ initial specified limit.
Shelf life at 85 °C 1000 hours: Δ CAP ± 20 % from
LOW TEMPERATURE PERFORMANCE
initial measurement. Δ DF 2 x initial specified limit.
MAXIMUM IMPEDANCE RATIO Z(T)/Z(+ 20 °C) MAXIMUM AT 120 Hz
Δ DCL ≤ the initial specified limit.
Rated Voltage
DC leakage current rated voltage for 1 minute for Z - 25 °C/Z + 20 °C Z - 40 °C/Z + 20 °C
(WVDC)
6.3 WVDC to 100 WVDC units
I < 0.03 CV or 4 µA 6.3 4.0 10.0
(whichever is greater)
rated voltage for 2 minute for
6.3 WVDC to 100 WVDC units I < 0.01 CV or 3 µA 25.0 2.0 4.0 (whichever is greater)
rated voltage for 1 minute for 160
WVDC to 450 WVDC units I < 0.1 CV + 40 µA and CV ≤ 1000 315.0 - 350.0 6.0 I < 0.04 CV + 100 µA and CV > 1000
DIMENSIONS in inches [millimeters] CASE NOMINAL CASE SIZE LEAD TYPICAL WEIGHT CASE NOMINAL CASE SIZE LEAD TYPICAL WEIGHT CODE D x L DIAMETER (Grams) CODE D x L DIAMETER (Grams) JL 0.197 x .472 [5.0 x 12.0] 0.024 [0.6] 0.56 NR 0.394 x 0.984 [10.0 x 25.0] 0.024 [0.6] 3.10 LL 0.248 x .472 [6.3 x 12.0] 0.024 [0.6] 0.74 PR 0.512 x 1.023 [13.0 x 26.0] 0.024 [0.6] 4.63 LM 0.248 x .472 [6.3 x 12.0] 0.024 [0.6] 0.91 PS 0.512 x 1.240 [13.0 x 31.5] 0.024 [0.6] 5.47 MM 0.315 x .630 [8.0 x 16.0] 0.024 [0.6] 1.00 QS 0.630 x 1.240 [16.0 x 31.5] 0.031 [0.8] 8.26 MN 0.315 x .787 [8.0 x 20.0] 0.024 [0.6] 1.70 QT 0.630 x 1.633 [16.0 x 41.5] 0.031 [0.8] 10.42 NP 0.394 x .827 [10.0 x 21.0] 0.024 [0.6] 2.32 RT 0.709 x 1.614 [18.0 x 41.0] 0.031 [0.8] 12.42
Document Number: 42046 For technical questions contact: [email protected] www.vishay.com
Revision: 24-May-05
