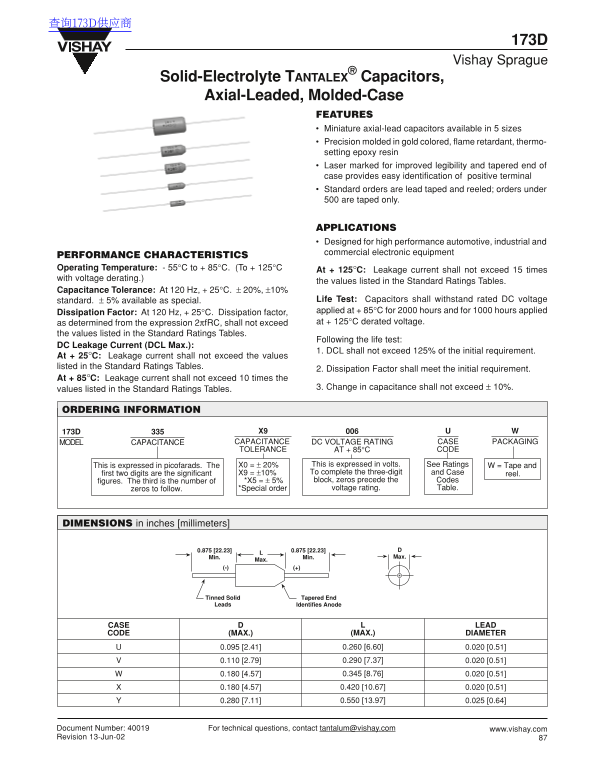

173D Vishay Sprague
® Capacitors,
Solid-Electrolyte TANTALEX Axial-Leaded, Molded-Case
FEATURES Miniature axial-lead capacitors available in 5 sizes Precision molded in gold colored, flame retardant, thermo- setting epoxy resin Laser marked for improved legibility and tapered end of case provides easy identification of positive terminal Standard orders are lead taped and reeled; orders under 500 are taped only.
APPLICATIONS Designed for high performance automotive, industrial and commercial electronic equipment
PERFORMANCE CHARACTERISTICS Operating Temperature: - 55°C to + 85°C. (To + 125°C
At + 125°C: Leakage current shall not exceed 15 times
with voltage derating.)
the values listed in the Standard Ratings Tables.
Capacitance Tolerance: At 120 Hz, + 25°C. ± 20%, ±10%
standard. ± 5% available as special. Life Test: Capacitors shall withstand rated DC voltage Dissipation Factor: At 120 Hz, + 25°C. Dissipation factor, applied at + 85°C for 2000 hours and for 1000 hours applied as determined from the expression 2πf RC, shall not exceed at + 125°C derated voltage.
the values listed in the Standard Ratings Tables.
Following the life test:
DC Leakage Current (DCL Max.):
1. DCL shall not exceed 125% of the initial requirement.
At + 25°C: Leakage current shall not exceed the values listed in the Standard Ratings Tables.
2. Dissipation Factor shall meet the initial requirement.
At + 85°C: Leakage current shall not exceed 10 times the
values listed in the Standard Ratings Tables. 3. Change in capacitance shall not exceed ± 10%.
ORDERING INFORMATION
173D X9 MODEL CAPACITANCE CAPACITANCE DC VOLTAGE RATING CASE PACKAGING TOLERANCE AT + 85°C CODE
This is expressed in picofarads. The X0 = ± 20% This is expressed in volts. See Ratings W = Tape and first two digits are the significant X9 = ±10% To complete the three-digit and Case reel. figures. The third is the number of *X5 = ± 5% block, zeros precede the Codes
zeros to follow. *Special order voltage rating. Table.
DIMENSIONS in inches [millimeters]
Min. Min. Max.
Tinned Solid Tapered End Leads Identifies Anode
CASE LEAD
CODE (MAX.) (MAX.) DIAMETER 0.095 [2.41] 0.260 [6.60] 0.020 [0.51] 0.110 [2.79] 0.290 [7.37] 0.020 [0.51] 0.180 [4.57] 0.345 [8.76] 0.020 [0.51] 0.180 [4.57] 0.420 [10.67] 0.020 [0.51] 0.280 [7.11] 0.550 [13.97] 0.025 [0.64]
