Vishay TFDU5307 Data Handbook

Summary

The TFDU5307 is a high-performance, low-power Infrared Transceiver Module designed for reliable IrDA communication up to 1.152 Mbit/s. This complete front-end solution integrates the emitter, receiver, and control logic into a compact, surface-mount module. Ideal for engineers developing consumer electronics, telecommunication devices (phones), or industrial equipment that requires robust, bi-directional wireless infrared links. It guarantees long-range performance and low power consumption across standard computing voltage ranges.

📄 Preview 📖 Table of Contents Contents PAGE OF 17

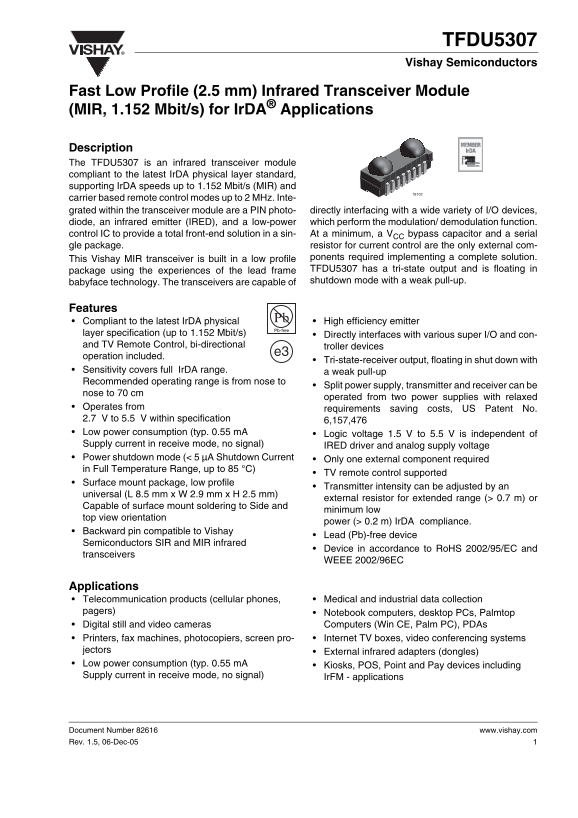

Page 1 Text Content

TFDU5307 Vishay Semiconductors

Fast Low Profile (2.5 mm) Infrared Transceiver Module (MIR, 1.152 Mbit/s) for Ir DA® Applications

Description The TFDU5307 is an infrared transceiver module compliant to the latest Ir DA physical layer standard, supporting Ir DA speeds up to 1.152 Mbit/s (MIR) and carrier based remote control modes up to 2 MHz. Inte-

grated within the transceiver module are a PIN photo- directly interfacing with a wide variety of I/O devices, diode, an infrared emitter (IRED), and a low-power which perform the modulation/ demodulation function. control IC to provide a total front-end solution in a sin- At a minimum, a VCC bypass capacitor and a serial

gle package. resistor for current control are the only external com-

This Vishay MIR transceiver is built in a low profile ponents required implementing a complete solution. package using the experiences of the lead frame TFDU5307 has a tri-state output and is floating in babyface technology. The transceivers are capable of shutdown mode with a weak pull-up.

Features

Compliant to the latest Ir DA physical High efficiency emitter

layer specification (up to 1.152 Mbit/s) Directly interfaces with various super I/O and con- and TV Remote Control, bi-directional troller devices

operation included.

Tri-state-receiver output, floating in shut down with

Sensitivity covers full Ir DA range. a weak pull-up Recommended operating range is from nose to

Split power supply, transmitter and receiver can be

nose to 70 cm

operated from two power supplies with relaxed

Operates from requirements saving costs, US Patent No. 2.7 V to 5.5 V within specification 6,157,476 Low power consumption (typ. 0.55 m A Logic voltage 1.5 V to 5.5 V is independent of Supply current in receive mode, no signal) IRED driver and analog supply voltage Power shutdown mode (< 5 µA Shutdown Current Only one external component required in Full Temperature Range, up to 85 °C)

TV remote control supported

Surface mount package, low profile

Transmitter intensity can be adjusted by an

universal (L 8.5 mm x W 2.9 mm x H 2.5 mm)

external resistor for extended range (> 0.7 m) or

Capable of surface mount soldering to Side and

minimum low

top view orientation

power (> 0.2 m) Ir DA compliance.

Backward pin compatible to Vishay

Lead (Pb)-free device

Semiconductors SIR and MIR infrared

Device in accordance to Ro HS 2002/95/EC and

transceivers

WEEE 2002/96EC

Applications

Telecommunication products (cellular phones, Medical and industrial data collection

pagers) Notebook computers, desktop PCs, Palmtop

Digital still and video cameras Computers (Win CE, Palm PC), PDAs Printers, fax machines, photocopiers, screen pro- Internet TV boxes, video conferencing systems

jectors External infrared adapters (dongles) Low power consumption (typ. 0.55 m A Kiosks, POS, Point and Pay devices including Supply current in receive mode, no signal) Ir FM - applications

Document Number 82616 www.vishay.com Rev. 1.5, 06-Dec-05

Page Summary Contents For Vishay TFDU5307 Data Handbook

Page 1 TFDU5307 Vishay Semiconductors Fast Low Profile (2.5 mm) Infrared Transceiver Module (MIR, 1.152 Mbit/s) for Ir DA® Applications Description The TFDU5307 is an infrared transceiver module compliant to...
Page 2 TFDU5307 Vishay Semiconductors Parts Table Part Description Qty / Reel TFDU5307-TR1 Oriented in carrier tape for side view surface mounting 750 pcs TFDU5307-TR3 Oriented in carrier tape for side view ...
Page 3 TFDU5307 Vishay Semiconductors Pinout Definitions: TFDU5307 In the Vishay transceiver data sheets the following weight 75 mg nomenclature is used for defining the Ir DA operating modes: SIR: 2.4 kbit/...
Page 4 TFDU5307 Vishay Semiconductors Eye safety information Parameter Test Conditions Symbol Min Typ. Max Unit Virtual source size Method: (1-1/e) encircled 1.8 2.0 mm energy Maximum intensity for class 1 I...
Page 5 TFDU5307 Vishay Semiconductors Optoelectronic Characteristics Receiver Tamb = 25 °C, VCC = 2.7 V to 5.5 V unless otherwise noted. Typical values are for DESIGN AID ONLY, not guaranteed nor subject to ...
Page 6 TFDU5307 Vishay Semiconductors Transmitter Tamb = 25 °C, VCC = 2.7 V to 5.5 V unless otherwise noted. Typical values are for DESIGN AID ONLY, not guaranteed nor subject to production testing. Paramete...
Page 7 TFDU5307 Vishay Semiconductors Recommended Circuit Diagram The inputs (TXD, SD) and the output RXD should be directly (DC) coupled to the I/O circuit. Used with a clean low impedance power supply the ...
Page 8 TFDU5307 Vishay Semiconductors I/O and Software 3. Set SD to logic &quot;LOW&quot; (this negative edge latches state of TXD, which determines speed setting). In the description, already different I/Os...
Page 9 TFDU5307 Vishay Semiconductors Table 2. Truth table Inputs Outputs Remark SD TXD RXD Transmitte Operation Optical input Irradiance m W/m2 high weakly pulled Time window for pulse duration &lt; 600 µs ...
Page 10 TFDU5307 em er at re /° Vishay Semiconductors em pe ra tu re /° Recommended Solder Profile Solder Profile for Sn/Pb soldering Lead-Free, Recommended Solder Profile The lead-frame based transceivers (a...
Page 11 TFDU5307 Vishay Semiconductors bi en Te pe ra tu re °C T peak = 260 °C max Te pe ra tu re /°C Time above 217 °C t ≤ 70 s Time above 250 °C t ≤ 40 s Peak temperature T peak = 260 °C Time/s Figure 5. So...
Page 12 TFDU5307 Vishay Semiconductors TFDU5307 - Tiny Face (Universal) Package (Dimensions in mm) (Mechanical Dimensions) www.vishay.com Document Number 82616 Rev. 1.5, 06-Dec-05
Page 13 TFDU5307 Vishay Semiconductors Reel Dimensions Tape Width A max. W1 min. W2 max. W3 min. W3 max. mm mm mm mm mm mm mm Document Number 82616 www.vishay.com Rev. 1.5, 06-Dec-05
Page 14 TFDU5307 Vishay Semiconductors Tape Dimensions in mm Drawing-No.: 9.700-5280.01-4 Issue: 1; 03.11.03 Figure 7. Tape drawing, TFDU5307 for top view mounting www.vishay.com Document Number 82616 Rev. 1....
Page 15 TFDU5307 Vishay Semiconductors Drawing-No.: 9.700-5279.01-4 Issue: 1; 08.12.04 Figure 8. Tape drawing, TFDU5307 for side view mounting Document Number 82616 www.vishay.com Rev. 1.5, 06-Dec-05
Page 16 TFDU5307 Vishay Semiconductors Ozone Depleting Substances Policy Statement It is the policy of Vishay Semiconductor Gmb H to 1. Meet all present and future national and international statutory require...
Page 17 Legal Disclaimer Notice Vishay Notice Specifications of the products displayed herein are subject to change without notice. Vishay Intertechnology, Inc., or anyone on its behalf, assumes no responsibi...
