These bZX84-V-Series Small Signal Zener Diodes are essential components for precise voltage regulation and power protection in electronic circuits. This comprehensive data sheet provides engineers with detailed electrical characteristics, including a wide selection of standardized zener voltages (ranging from 2.2V to 31V), dynamic resistance values, and absolute maximum ratings. It is intended for electronics designers and manufacturers needing reliable, high-performance voltage reference components suitable for diverse applications requiring stable power sources.

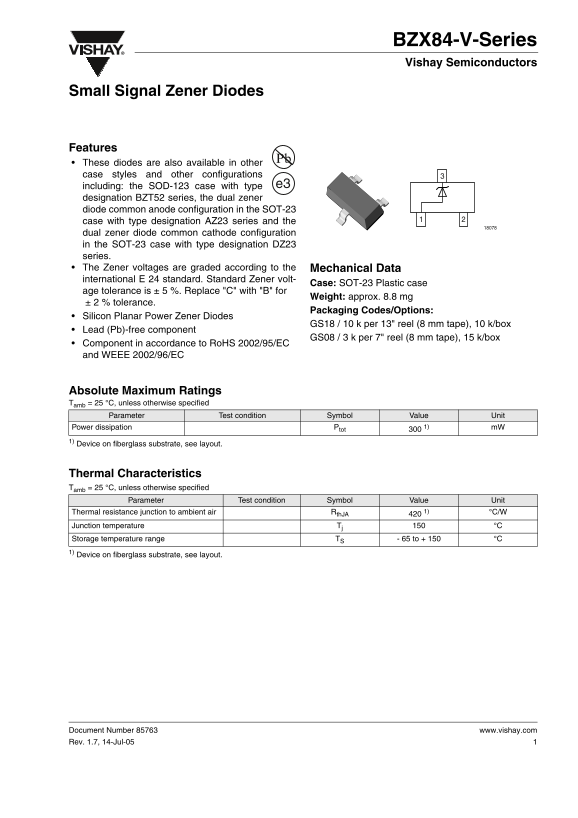

Page 1 Text Content
BZX84-V-Series Vishay Semiconductors
Small Signal Zener Diodes
Features These diodes are also available in other case styles and other configurations
including: the SOD-123 case with type e3
designation BZT52 series, the dual zener diode common anode configuration in the SOT-23 case with type designation AZ23 series and the dual zener diode common cathode configuration in the SOT-23 case with type designation DZ23 series. The Zener voltages are graded according to the Mechanical Data international E 24 standard. Standard Zener volt-
Case: SOT-23 Plastic case
age tolerance is ± 5 %. Replace "C" with "B" for
Weight: approx. 8.8 mg
± 2 % tolerance.
Packaging Codes/Options:
Silicon Planar Power Zener Diodes
GS18 / 10 k per 13" reel (8 mm tape), 10 k/box
Lead (Pb)-free component
GS08 / 3 k per 7" reel (8 mm tape), 15 k/box
Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Power dissipation Ptot m W
1) Device on fiberglass substrate, see layout.
Thermal Characteristics Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Thermal resistance junction to ambient air Rth JA °C/W
Junction temperature Tj °C Storage temperature range TS - 65 to + 150 °C 1) Device on fiberglass substrate, see layout.
Document Number 85763 www.vishay.com Rev. 1.7, 14-Jul-05
Page Summary Contents For Vishay BZX84-V Series Data Handbook Manual
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 11 |
| File Size | 457.30 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum power dissipation for this Zener diode?
The maximum total power dissipation (Ptot) is rated at 300 mW.
Are these diodes available in different packages or configurations?
Yes, they are also available in case styles like SOD-123 and SOT-23 (e.g., AZ23 or DZ23 series).
Do I need to validate the performance for my specific application?
Yes, all operating parameters must be validated for each customer application by the customer.
What environmental certifications do these components hold?
The component is made in accordance with RoHS 2002/95/EC and WEEE 2002/96/EC regulations.
