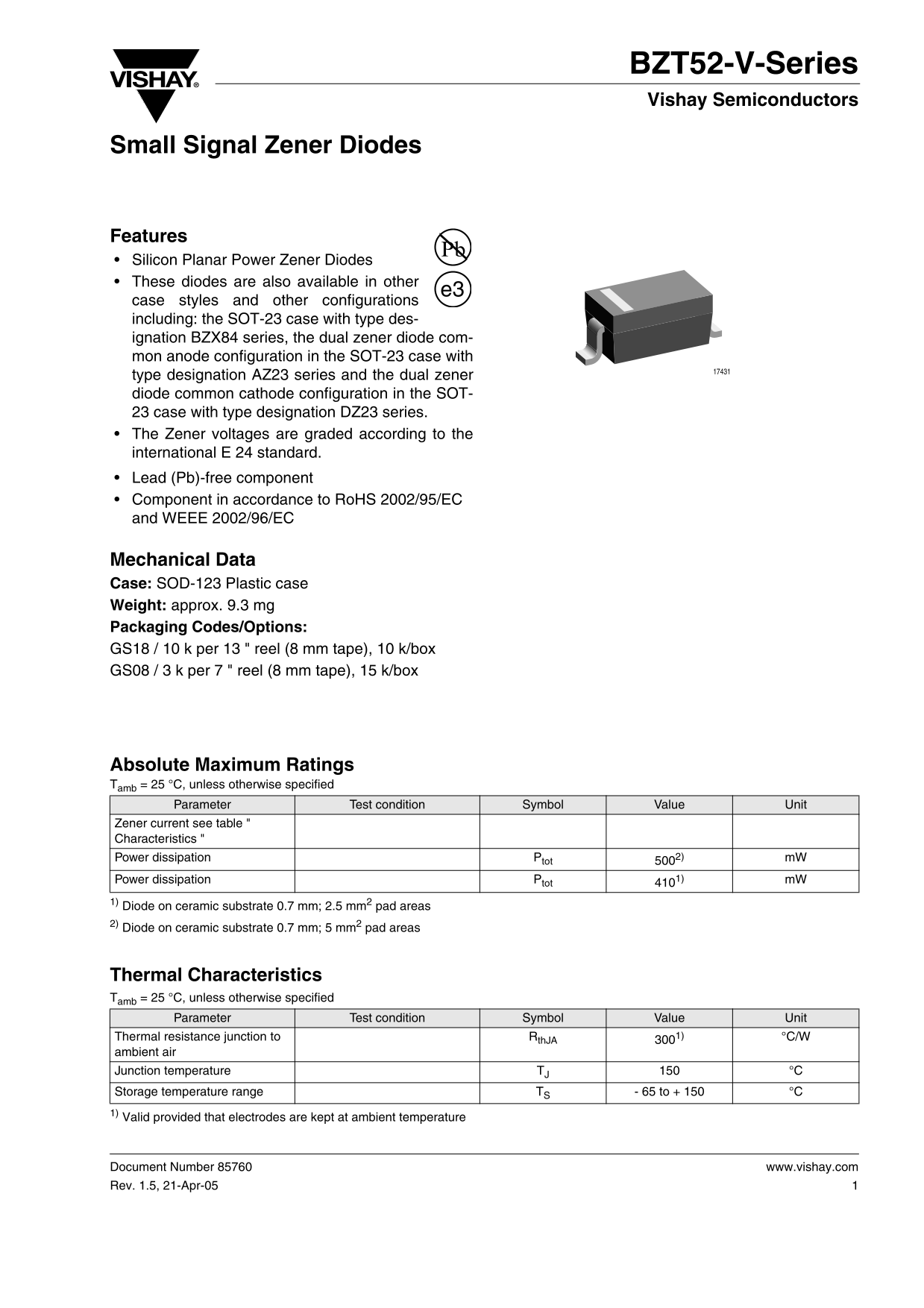

Vishay Semiconductor BZT52-V-Series User's Manual and Specifications

BZT52-V-Series Vishay Semiconductors

Small Signal Zener Diodes

Features Silicon Planar Power Zener Diodes These diodes are also available in other

case styles and other configurations including: the SOT-23 case with type des- ignation BZX84 series, the dual zener diode com- mon anode configuration in the SOT-23 case with type designation AZ23 series and the dual zener diode common cathode configuration in the SOT- 23 case with type designation DZ23 series. The Zener voltages are graded according to the international E 24 standard. Lead (Pb)-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC

Mechanical Data Case: SOD-123 Plastic case Weight: approx. 9.3 mg Packaging Codes/Options: GS18 / 10 k per 13 " reel (8 mm tape), 10 k/box GS08 / 3 k per 7 " reel (8 mm tape), 15 k/box

Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified

Parameter Test condition Symbol Value Unit

Zener current see table " Characteristics "

Power dissipation Ptot m W

Power dissipation Ptot m W

1) Diode on ceramic substrate 0.7 mm; 2.5 mm2 pad areas

2) Diode on ceramic substrate 0.7 mm; 5 mm2 pad areas

Thermal Characteristics Tamb = 25 °C, unless otherwise specified

Parameter Test condition Symbol Value Unit

Thermal resistance junction to Rth JA °C/W

ambient air

Junction temperature TJ °C

Storage temperature range TS - 65 to + 150 °C 1) Valid provided that electrodes are kept at ambient temperature

Document Number 85760 www.vishay.com Rev. 1.5, 21-Apr-05
