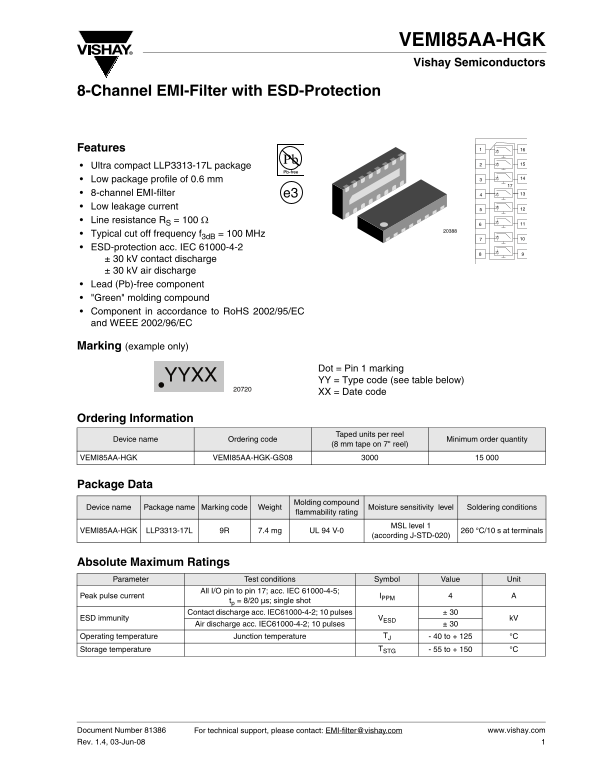

VEMI85AA-HGK Vishay Semiconductors
8-Channel EMI-Filter with ESD-Protection
Features Ultra compact LLP3313-17L package Low package profile of 0.6 mm 8-channel EMI-filter e3 Low leakage current Line resistance RS = 100 Ω Typical cut off frequency f3d B = 100 MHz ESD-protection acc. IEC 61000-4-2 ± 30 k V contact discharge ± 30 k V air discharge Lead (Pb)-free component "Green" molding compound Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Marking (example only)
Dot = Pin 1 marking
YYXX YY = Type code (see table below)
XX = Date code
Ordering Information
Taped units per reel
Device name Ordering code Minimum order quantity
(8 mm tape on 7" reel)
VEMI85AA-HGK VEMI85AA-HGK-GS08 15 000
Package Data
Molding compound
Device name Package name Marking code Weight Moisture sensitivity level Soldering conditions
flammability rating
MSL level 1
VEMI85AA-HGK LLP3313-17L 9R 7.4 mg UL 94 V-0 260 °C/10 s at terminals
(according J-STD-020)
Absolute Maximum Ratings Parameter Test conditions Symbol Value Unit
All I/O pin to pin 17; acc. IEC 61000-4-5;
Peak pulse current IPPM
tp = 8/20 µs; single shot
Contact discharge acc. IEC61000-4-2; 10 pulses ± 30
ESD immunity VESD k V
Air discharge acc. IEC61000-4-2; 10 pulses ± 30
Operating temperature Junction temperature TJ - 40 to + 125 °C Storage temperature TSTG - 55 to + 150 °C
Document Number 81386 For technical support, please contact: [email protected] www.vishay.com Rev. 1.4, 03-Jun-08
