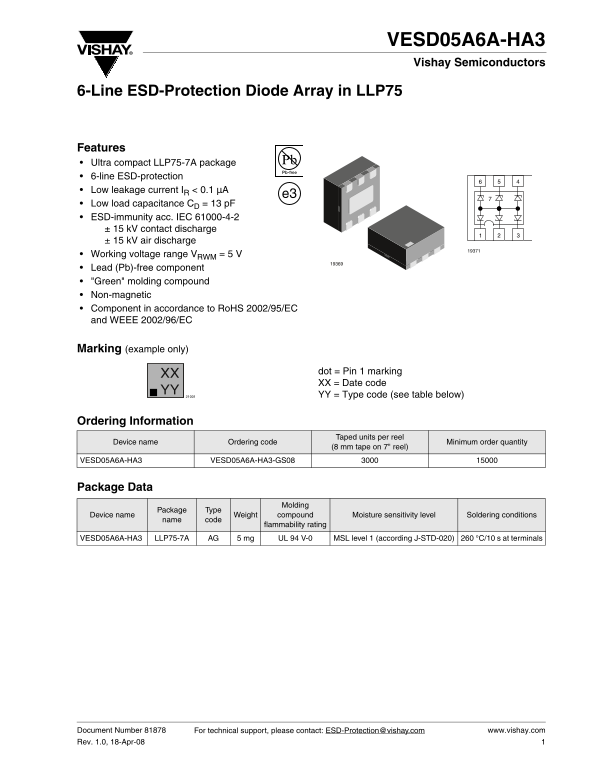

VESD05A6A-HA3 Vishay Semiconductors
6-Line ESD-Protection Diode Array in LLP75
Features Ultra compact LLP75-7A package 6-line ESD-protection Low leakage current IR < 0.1 µA
Low load capacitance CD = 13 p F ESD-immunity acc. IEC 61000-4-2 ± 15 k V contact discharge ± 15 k V air discharge Working voltage range VRWM = 5 V Lead (Pb)-free component "Green" molding compound Non-magnetic Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Marking (example only)
dot = Pin 1 marking
XX = Date code
YY = Type code (see table below)
Ordering Information
Taped units per reel
Device name Ordering code Minimum order quantity
(8 mm tape on 7" reel)
VESD05A6A-HA3 VESD05A6A-HA3-GS08
Package Data
Molding
Package Type
Device name Weight compound Moisture sensitivity level Soldering conditions
name code
flammability rating
VESD05A6A-HA3 LLP75-7A AG 5 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals
Document Number 81878 For technical support, please contact: [email protected] www.vishay.com Rev. 1.0, 18-Apr-08
