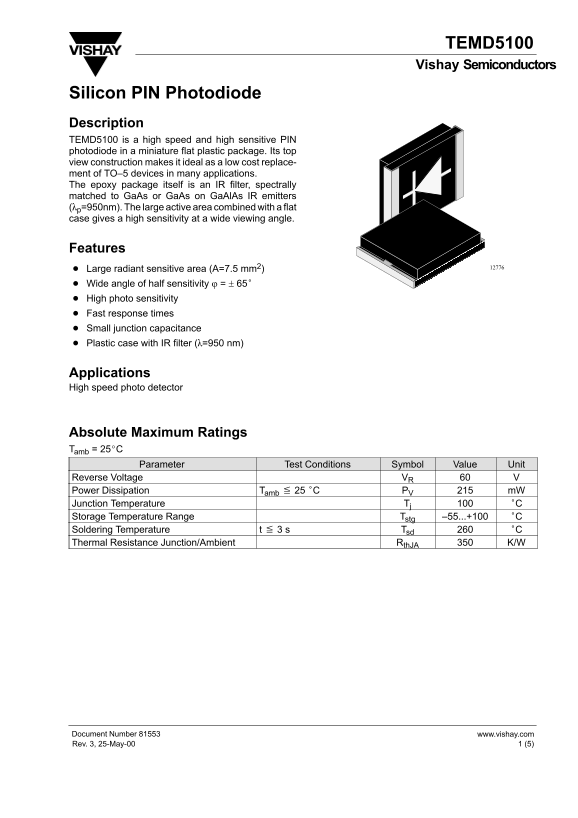

TEMD5100 Vishay Semiconductors
Silicon PIN Photodiode Description TEMD5100 is a high speed and high sensitive PIN photodiode in a miniature flat plastic package. Its top view construction makes it ideal as a low cost replace- ment of TO–5 devices in many applications. The epoxy package itself is an IR filter, spectrally matched to Ga As or Ga As on Ga Al As IR emitters (p=950nm). The large active area combined with a flat case gives a high sensitivity at a wide viewing angle.
Features Large radiant sensitive area (A=7.5 mm2) Wide angle of half sensitivity ϕ = ± 65 High photo sensitivity Fast response times Small junction capacitance Plastic case with IR filter (=950 nm)
Applications High speed photo detector
Absolute Maximum Ratings Tamb = 25C
Parameter Test Conditions Symbol Value Unit
Reverse Voltage VR Power Dissipation Tamb 25 C PV m W Junction Temperature Tj Storage Temperature Range Tstg –55...+100 Soldering Temperature t 3 s Tsd Thermal Resistance Junction/Ambient Rth JA K/W
www.vishay.com Document Number 81553
1 (5)Rev. 3, 25-May-00
