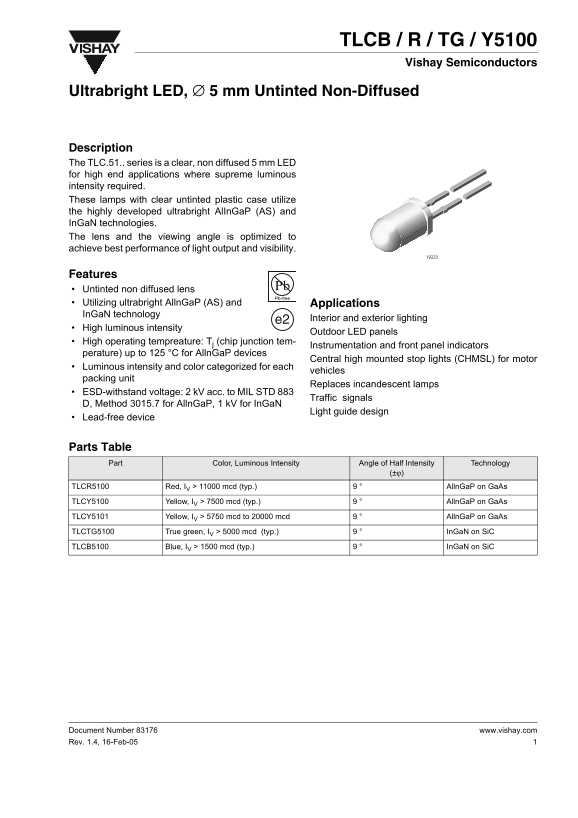

TLCB / R / TG / Y5100 Vishay Semiconductors
Ultrabright LED, ∅ 5 mm Untinted Non-Diffused
Description The TLC.51.. series is a clear, non diffused 5 mm LED for high end applications where supreme luminous intensity required. These lamps with clear untinted plastic case utilize the highly developed ultrabright Al In Ga P (AS) and In Ga N technologies. The lens and the viewing angle is optimized to achieve best performance of light output and visibility.
Features Untinted non diffused lens Utilizing ultrabright Alln Ga P (AS) and Applications In Ga N technology
e2 Interior and exterior lighting
High luminous intensity
Outdoor LED panels
High operating tempreature: Tj (chip junction tem-
Instrumentation and front panel indicators
perature) up to 125 °C for Alln Ga P devices
Central high mounted stop lights (CHMSL) for motor
Luminous intensity and color categorized for each
vehicles
packing unit
Replaces incandescent lamps
ESD-withstand voltage: 2 k V acc. to MIL STD 883
Traffic signals
D, Method 3015.7 for Alln Ga P, 1 k V for In Ga N
Light guide design
Lead-free device
Parts Table Part Color, Luminous Intensity Angle of Half Intensity Technology
TLCR5100 Red, IV > 11000 mcd (typ.) Alln Ga P on Ga As
TLCY5100 Yellow, IV > 7500 mcd (typ.) Alln Ga P on Ga As
TLCY5101 Yellow, IV > 5750 mcd to 20000 mcd Alln Ga P on Ga As
TLCTG5100 True green, IV > 5000 mcd (typ.) In Ga N on Si C
TLCB5100 Blue, IV > 1500 mcd (typ.) In Ga N on Si C
