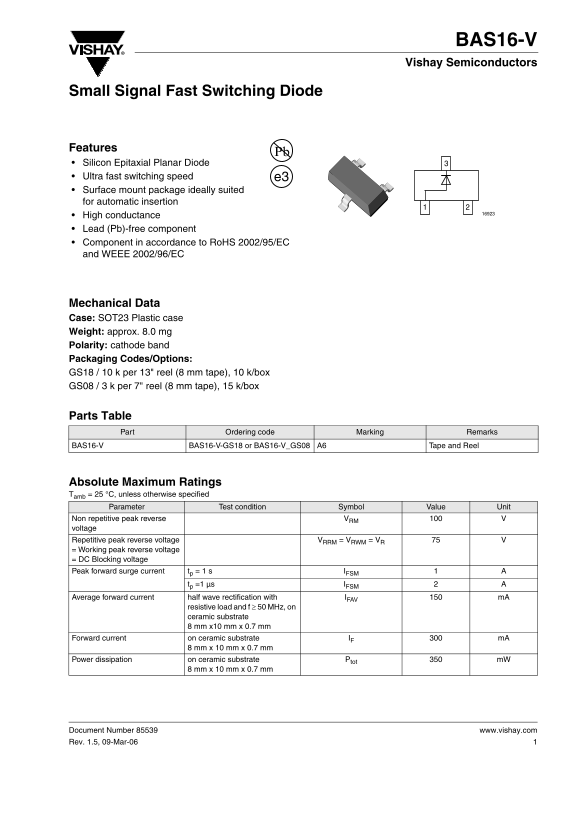

Page 1 Text Content
BAS16-V Vishay Semiconductors
Small Signal Fast Switching Diode
Features Silicon Epitaxial Planar Diode Ultra fast switching speed e3 Surface mount package ideally suited for automatic insertion High conductance Lead (Pb)-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Mechanical Data Case: SOT23 Plastic case Weight: approx. 8.0 mg Polarity: cathode band Packaging Codes/Options: GS18 / 10 k per 13" reel (8 mm tape), 10 k/box GS08 / 3 k per 7" reel (8 mm tape), 15 k/box
Parts Table
Part Ordering code Marking Remarks
BAS16-V BAS16-V-GS18 or BAS16-V_GS08 A6 Tape and Reel
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Non repetitive peak reverse VRM voltage
Repetitive peak reverse voltage VRRM = VRWM = VR
= Working peak reverse voltage = DC Blocking voltage Peak forward surge current tp = 1 s IFSM
tp =1 µs IFSM
Average forward current half wave rectification with IFAV m A
resistive load and f ≥ 50 MHz, on ceramic substrate 8 mm x10 mm x 0.7 mm
Forward current on ceramic substrate IF m A
8 mm x 10 mm x 0.7 mm
Power dissipation on ceramic substrate Ptot m W
8 mm x 10 mm x 0.7 mm
Document Number 85539 www.vishay.com Rev. 1.5, 09-Mar-06
Page Summary Contents For VISHAY SEMICONDUCTOR BAS16-V Vishay Semiconductors Small Signal Fast Switching Diode Data Sheet User Manual
Manual Details
| Brand | Vishay |
|---|---|
| Pages | 5 |
| File Size | 153.55 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Is this component compliant with current environmental standards like RoHS?
Yes, it is a Lead (Pb)-free component and complies with both RoHS 2002/95/EC and WEEE 2002/96/EC.
What are the usage limitations regarding critical applications?
The product is not designed for use in medical, life-saving, or life-sustaining applications. Users doing so do so at their own risk.
What is the maximum power dissipation when mounted on a ceramic substrate?
The total power dissipation (P_tot) is 350 mW on an 8 mm x 10 mm x 0.7 mm ceramic substrate.
Can I rely solely on these datasheet parameters for my design?
No. Operating parameters must be validated for each customer application by the customer, as they are subject to change and variation.
