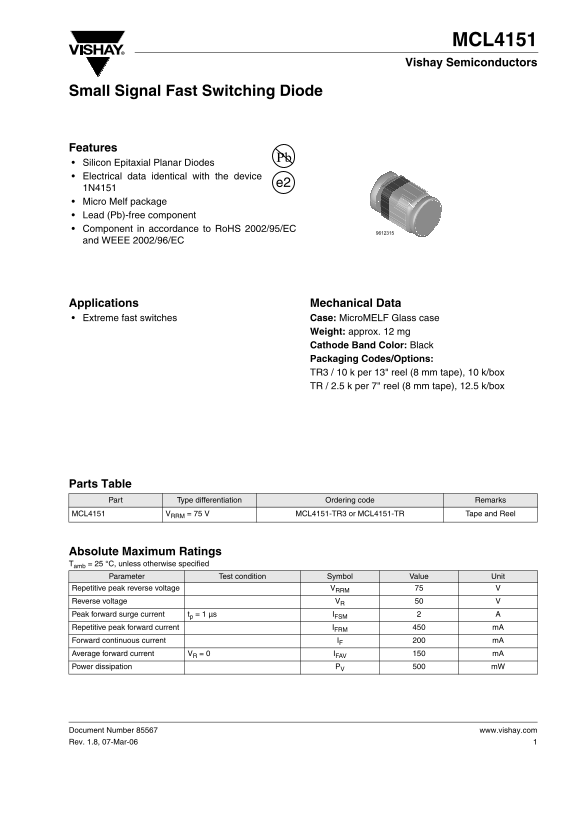

MCL4151 Vishay Semiconductors
Small Signal Fast Switching Diode
Features Silicon Epitaxial Planar Diodes Electrical data identical with the device
1N4151 Micro Melf package Lead (Pb)-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Applications Mechanical Data Extreme fast switches Case: Micro MELF Glass case
Weight: approx. 12 mg Cathode Band Color: Black Packaging Codes/Options: TR3 / 10 k per 13" reel (8 mm tape), 10 k/box TR / 2.5 k per 7" reel (8 mm tape), 12.5 k/box
Parts Table Part Type differentiation Ordering code Remarks
MCL4151 VRRM = 75 V MCL4151-TR3 or MCL4151-TR Tape and Reel
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Repetitive peak reverse voltage VRRM Reverse voltage VR Peak forward surge current tp = 1 µs IFSM Repetitive peak forward current IFRM m A Forward continuous current IF m A Average forward current VR = 0 IFAV m A Power dissipation PV m W
