Fairchild 2N7002MTF Advanced Small Signal MOSFET Data Sheet
Summary
The 2N7002MTF is a robust N-Channel Small Signal MOSFET designed for reliable, compact switching applications. Featuring low on-resistance and fast switching capabilities within an SOT-23 package, it ensures performance longevity even in high-temperature environments. This manual serves as a comprehensive guide for electronic designers, detailing the component's absolute maximum ratings, electrical characteristics (including capacitance and leakage), and thermal specifications necessary to guarantee stable and efficient circuit operation.

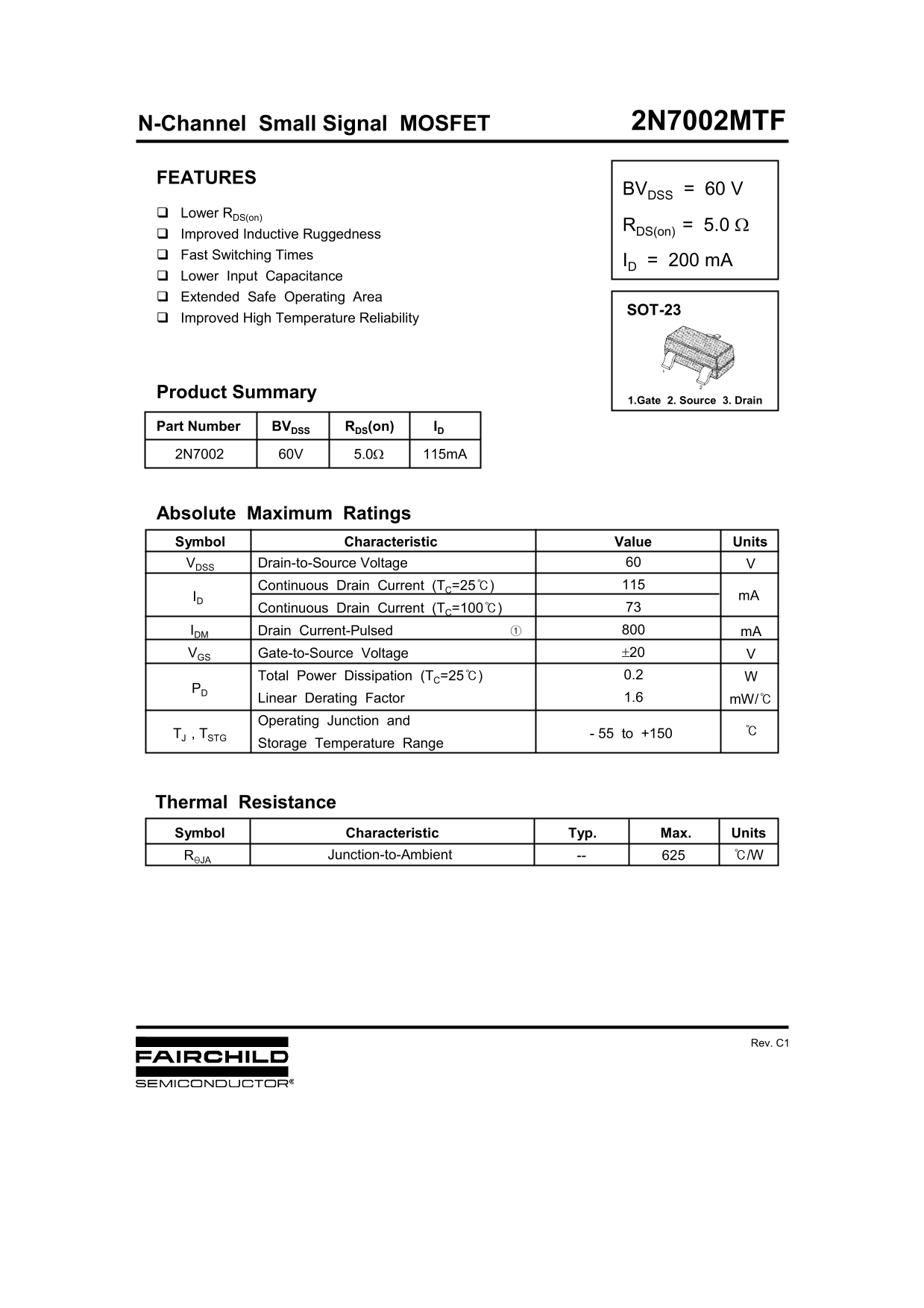

Page 1 Text Content
N-Channel Small Signal MOSFET 2N7002MTF
FEATURES
BVDSS = 60 V
Lower RDS(on)
RDS(on) = 5.0 Ω
Improved Inductive Ruggedness Fast Switching Times
ID = 200 m A
Lower Input Capacitance Extended Safe Operating Area
SOT-23
Improved High Temperature Reliability
Product Summary
1.Gate 2. Source 3. Drain
Part Number BVDSS RDS(on) ID
Absolute Maximum Ratings
Characteristic Value Units Symbol
VDSS Drain-to-Source Voltage
Continuous Drain Current (TC=25℃)
ID m A
Continuous Drain Current (TC=100℃)
IDM Drain Current-Pulsed ① m A
VGS Gate-to-Source Voltage ±20 Total Power Dissipation (TC=25℃) 0.2
Linear Derating Factor 1.6 m W/℃
Operating Junction and
TJ , TSTG 55 to +150
Storage Temperature Range
Thermal Resistance
Characteristic Typ. Max. Units Symbol Junction-to-Ambient RθJA 625-- ℃/W
Rev. C1
