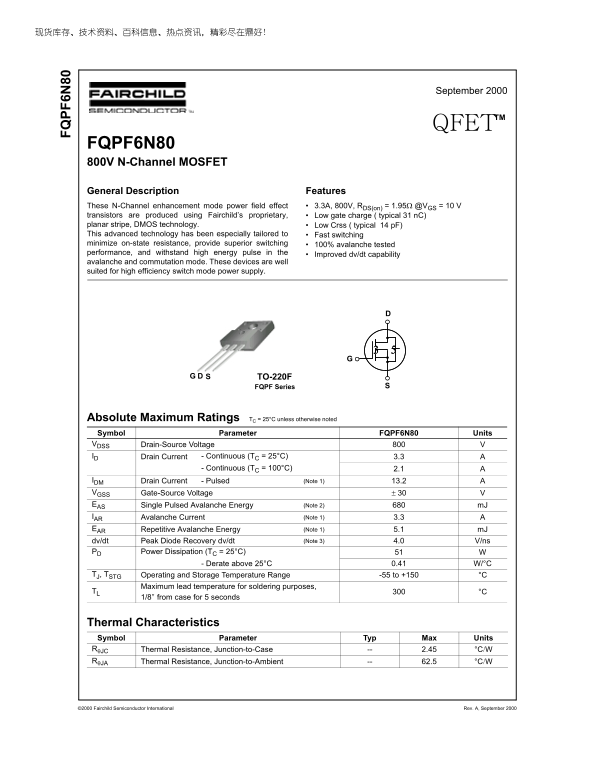

Fairchild FQPF6N80 800V N-Channel MOSFET Data Sheet

September 2000

QFETTM

FQPF6N80 800V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 3.3A, 800V, RDS(on) = 1.95Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 31 n C) planar stripe, DMOS technology. Low Crss ( typical 14 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well suited for high efficiency switch mode power supply.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF6N80 Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 3.3

- Continuous (TC = 100°C) 2.1

IDM Drain Current - Pulsed (Note 1) 13.2 VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 3.3 EAR Repetitive Avalanche Energy (Note 1) 5.1 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.0 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.41 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 2.45 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2000 Fairchild Semiconductor International Rev. A, September 2000
