Fairchild Semiconductor FQA170N06 60V N-Channel MOSFET Data Sheet

Summary

This manual details the FQA170N06, a high-performance 60V N-Channel MOSFET designed for automotive, DC/DC converters, and battery-powered devices. It covers specifications including a low on-resistance of 0.0056Ω, high avalanche energy handling, and reliable switching characteristics suitable for power management applications.

📄 Preview PAGE OF 8

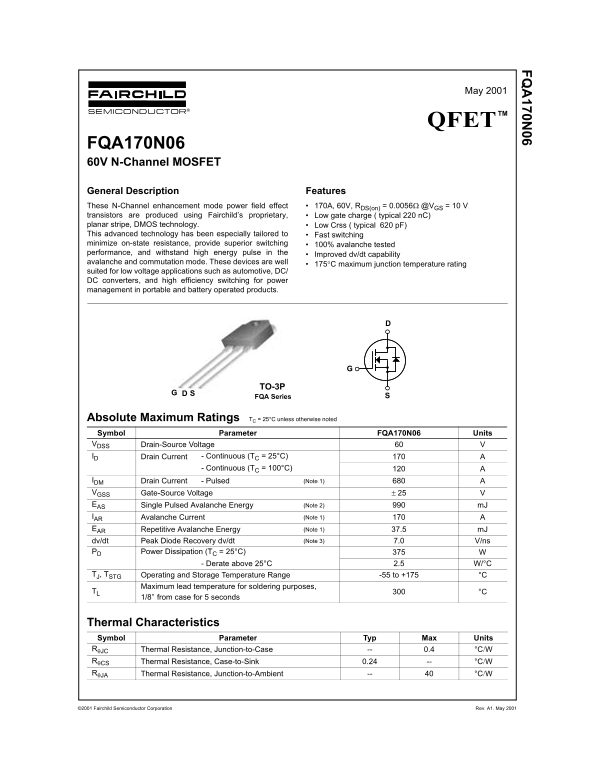

Page 1 Text Content

FQ 170N

May 2001

FQA170N06 60V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 170A, 60V, RDS(on) = 0.0056Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 220 n C) planar stripe, DMOS technology. Low Crss ( typical 620 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well

175°C maximum junction temperature rating

suited for low voltage applications such as automotive, DC/ DC converters, and high efficiency switching for power management in portable and battery operated products.

TO-3P

FQA Series G

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQA170N06 Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C)

- Continuous (TC = 100°C)

IDM Drain Current - Pulsed (Note 1) VGSS Gate-Source Voltage ± 25 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) EAR Repetitive Avalanche Energy (Note 1) 37.5 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 7.0 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 2.5 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +175 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 0.4 °C/W RθCS Thermal Resistance, Case-to-Sink 0.24 °C/W RθJA Thermal Resistance, Junction-to-Ambient °C/W

©2001 Fairchild Semiconductor Corporation Rev. A1. May 2001

Page Summary Contents For Fairchild Semiconductor FQA170N06 60V N-Channel MOSFET Data Sheet

Page 1 FQ 170N May 2001 FQA170N06 60V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 170A, 60V, RDS(on) = 0.0056Ω @VGS = 10 V transistors are produced using...
Page 2 FQ 170N Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆...
Page 3 FQ 170N Typical Characteristics Ca pa cit an ce [p F] [m DS (O N) D, ra in Cu rre nt [A Dr ain -S ou rc On -R es ist an ce VGS Top : 15.0 V 10.0 V 8.0 V 7.0 V 6.0 V 5.5 V Bottom : 4.5 V ※ Notes : ※ No...
Page 4 FQ 170N Typical Characteristics (Continued) BV DS , ( No rm ali ze d) D, ra in Cu rre nt [A Dr ain -S ou rce re ak do wn olt ag rm l R sp se JC(t 1.5 0.9 ※ Notes : 1. VGS = 0 V 0.5 ※ Notes : 2. ID = 2...
Page 5 FQ 170N Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Inductive...
Page 6 FQ 170N Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ( Dri...
Page 7 FQ 170N Package Dimensions TO-3P 5.45TYP 5.45TYP [5.45 ±0.30] [5.45 ±0.30] ©2001 Fairchild Semiconductor Corporation Rev. A1. May 2001
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...
