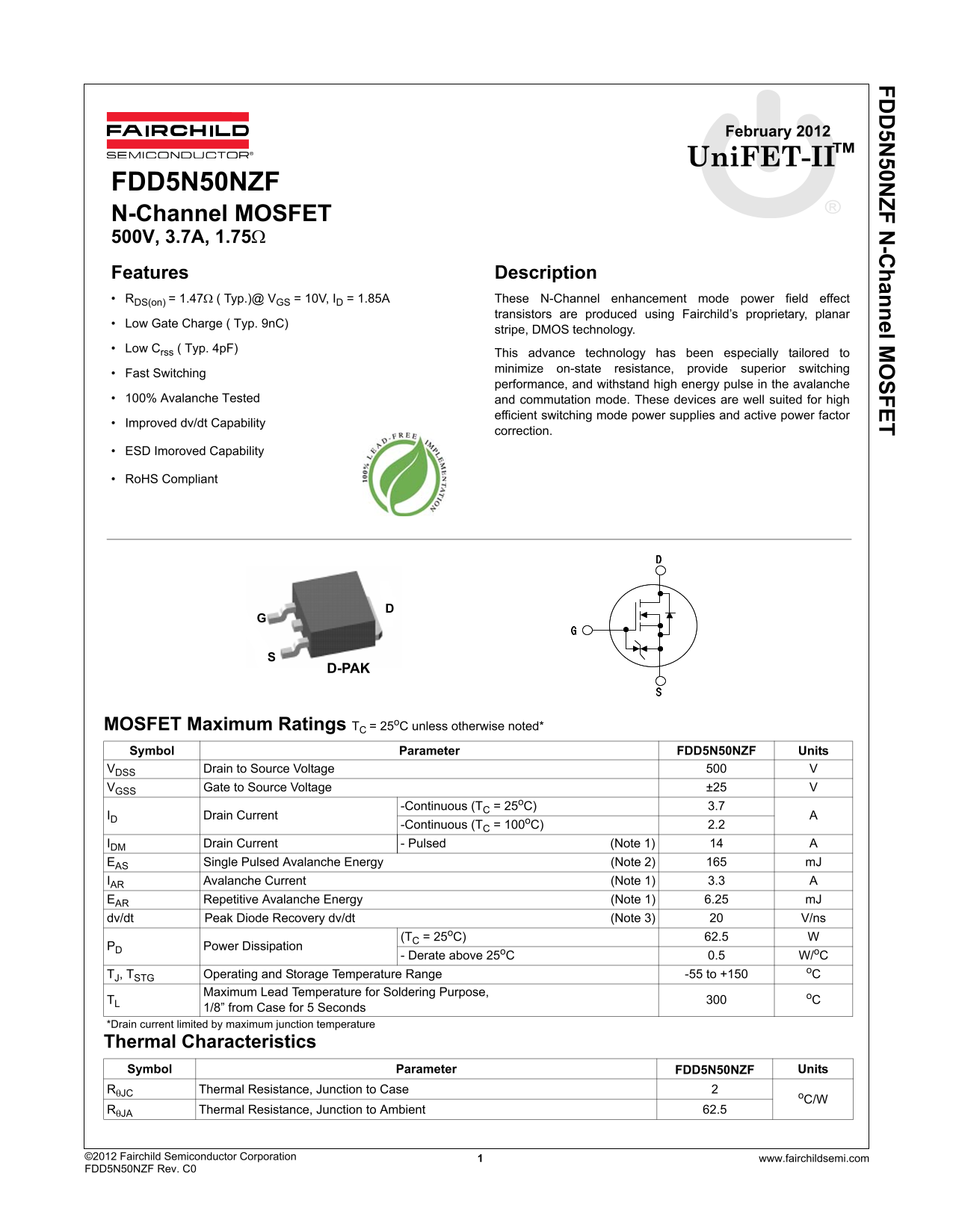

FD 5N 50N ZF N -C hannel M SFET
February 2012
Uni FET-II TM
FDD5N50NZF N-Channel MOSFET 500V, 3.7A, 1.75Ω Features Description RDS(on) = 1.47Ω ( Typ.)@ VGS = 10V, ID = 1.85A These N-Channel enhancement mode power field effect
transistors are produced using Fairchild’s proprietary, planar
Low Gate Charge ( Typ. 9n C)
stripe, DMOS technology.
Low Crss ( Typ. 4p F)
This advance technology has been especially tailored to minimize on-state resistance, provide superior switching
Fast Switching
performance, and withstand high energy pulse in the avalanche
100% Avalanche Tested and commutation mode. These devices are well suited for high
efficient switching mode power supplies and active power factor
Improved dv/dt Capability
correction.
ESD Imoroved Capability
Ro HS Compliant
D-PAK
MOSFET Maximum Ratings TC = 25o C unless otherwise noted* Symbol Parameter FDD5N50NZF Units
VDSS Drain to Source Voltage VGSS Gate to Source Voltage ±25
-Continuous (TC = 25o C) 3.7
ID Drain Current
-Continuous (TC = 100o C) 2.2
IDM Drain Current - Pulsed (Note 1) EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 3.3 EAR Repetitive Avalanche Energy (Note 1) 6.25 m J
dv/dt Peak Diode Recovery dv/dt (Note 3) 20 V/ns
(TC = 25o C) 62.5
PD Power Dissipation
- Derate above 25o C 0.5 W/o C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 Maximum Lead Temperature for Soldering Purpose, o C
1/8” from Case for 5 Seconds
*Drain current limited by maximum junction temperature
Thermal Characteristics Symbol Parameter FDD5N50NZF Units
RθJC Thermal Resistance, Junction to Case 2
RθJA Thermal Resistance, Junction to Ambient 62.5
©2012 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FDD5N50NZF Rev. C0
