Fairchild FQAF16N25C 250V N-Channel MOSFET Data Handbook (1)(1)

Summary

The FQAF16N25C is a high-performance N-Channel MOSFET semiconductor designed for efficient power handling and fast switching applications. This comprehensive manual provides critical technical data, including detailed electrical characteristics, absolute maximum ratings, and thermal profiles. It is intended for electronics engineers designing robust systems such as DC/DC converters, uninterrupted power supplies, and complex motor control units that require minimized energy loss and reliable high-efficiency operation.

📄 Preview PAGE OF 8

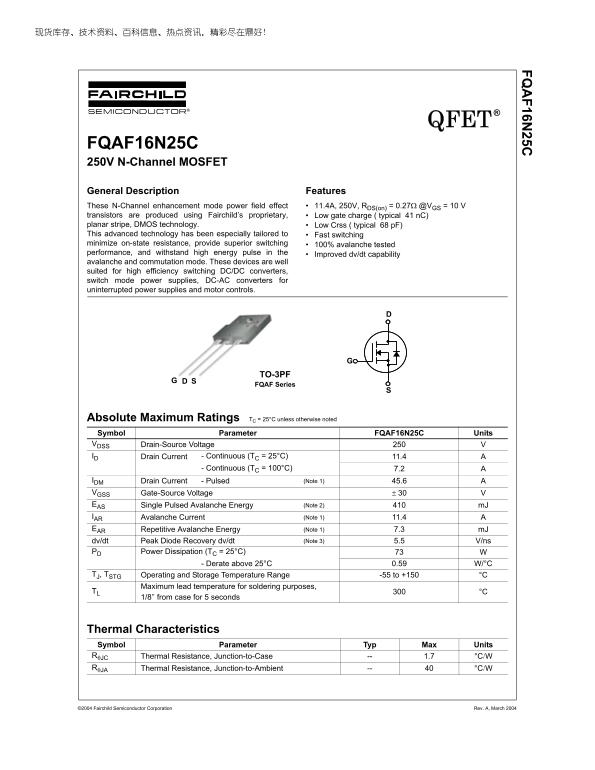

Page 1 Text Content

FQ F16N 25C

QFET®

FQAF16N25C 250V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 11.4A, 250V, RDS(on) = 0.27Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 41 n C) planar stripe, DMOS technology. Low Crss ( typical 68 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the Improved dv/dt capability avalanche and commutation mode. These devices are well suited for high efficiency switching DC/DC converters, switch mode power supplies, DC-AC converters for uninterrupted power supplies and motor controls.

TO-3PF

FQAF Series G

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQAF16N25C Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 11.4

- Continuous (TC = 100°C) 7.2

IDM Drain Current - Pulsed (Note 1) 45.6 VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 11.4 EAR Repetitive Avalanche Energy (Note 1) 7.3 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 5.5 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.59 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 1.7 °C/W RθJA Thermal Resistance, Junction-to-Ambient °C/W

©2004 Fairchild Semiconductor Corporation Rev. A, March 2004
