Fairchild FQPF2N70 700V N-Channel MOSFET Specifications (1)(1)

Summary

The FQPF2N70 is an N-Channel enhancement mode power MOSFET designed for high-efficiency switch mode power supplies. Utilizing proprietary planar stripe, DMOS technology, it features a 700V drain-source voltage and a 2.0A continuous drain current, optimized for low on-state resistance and fast switching performance. This technical datasheet provides absolute maximum ratings, electrical characteristics, and thermal performance data for electrical engineers and system designers.

📄 Preview PAGE OF 8

Page 1 Text Content

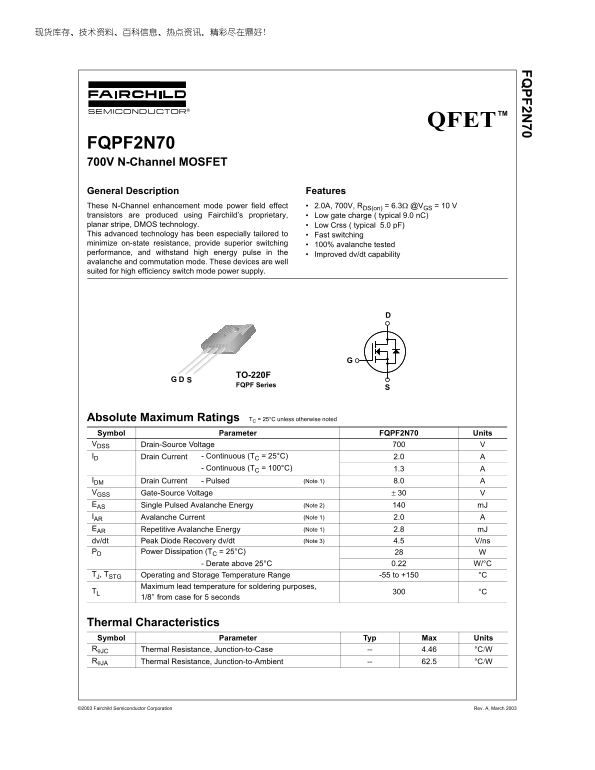

FQ PF2N 70QFET

FQPF2N70 700V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 2.0A, 700V, RDS(on) = 6.3Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 9.0 n C) planar stripe, DMOS technology. Low Crss ( typical 5.0 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well suited for high efficiency switch mode power supply.

TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF2N70 Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 2.0

- Continuous (TC = 100°C) 1.3

IDM Drain Current - Pulsed (Note 1) 8.0 VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 2.0 EAR Repetitive Avalanche Energy (Note 1) 2.8 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.22 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 4.46 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2003 Fairchild Semiconductor Corporation Rev. A, March 2003

Page Summary Contents For Fairchild FQPF2N70 700V N-Channel MOSFET Specifications (1)(1)

Page 1 FQ PF2N 70QFET FQPF2N70 700V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 2.0A, 700V, RDS(on) = 6.3Ω @VGS = 10 V transistors are produced using Fai...
Page 2 FQ PF2N Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆...
Page 3 FQ PF2N Typical Characteristics DS (O N) [Ω Ca pa cit an ce s [ p F Dr ain -S ou rc e O n- Re sis tan ce ra in Cu rre nt [A VGS Top : 15.0 V 10.0 V 8.0 V 7.0 V 6.5 V 6.0 V Bottom : 5.5 V ※ Note : ※ No...
Page 4 FQ PF2N Typical Characteristics (Continued) BV DS , (N orm ali ze d) ra in Cu rre nt [A Dr ain -S ou rce rea kd ow n V olt ag (t rm l R sp se JC ※ Note : ※ Note : 0.5 1. VGS = 10 V 1. VGS = 0 V 2. ID ...
Page 5 FQ PF2N Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Inductive...
Page 6 FQ PF2N Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ( Dri...
Page 7 FQ PF2N Package Dimensions TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] Dimensions in Millimeters Rev. A, March 2003©2003 Fairchild Semiconductor Corporation
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FACT...
