Fairchild FQPF7N60 600V N-Channel MOSFET Specifications

Summary

A high-performance N-Channel MOSFET designed for demanding switching applications, rated at 600V and capable of handling 4.3A continuous drain current. This device utilizes advanced DMOS technology to ensure fast switching speeds, low gate charge, and superior avalanche resistance, making it perfect for building high-efficiency switch mode power supplies (SMPS). The comprehensive manual details its electrical performance, including absolute maximum ratings, on/off characteristics, capacitance values, and thermal management parameters. It is essential reading for power electronics engineers integrating reliable, high-frequency switching components into critical circuit designs.

📄 Preview PAGE OF 8

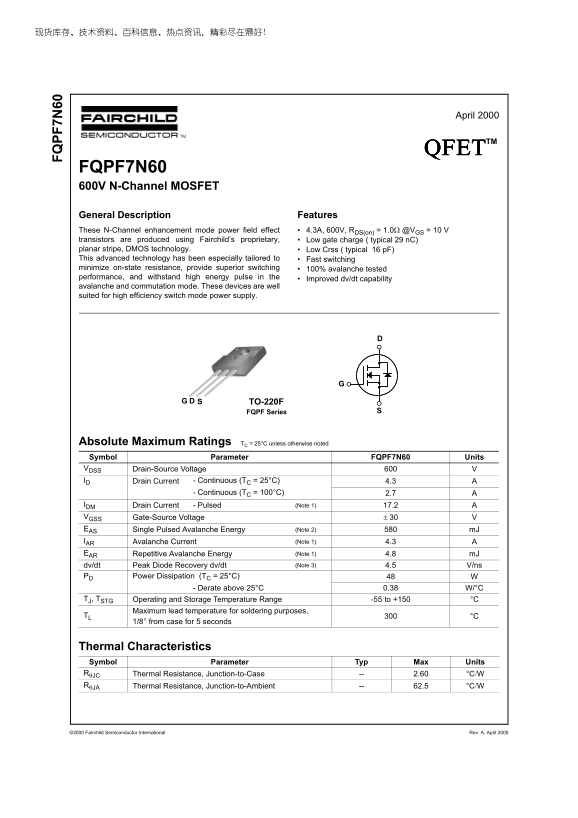

Page 1 Text Content

April 2000

QFETTM

FQPF7N60 600V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 4.3A, 600V, RDS(on) = 1.0Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 29 n C) planar stripe, DMOS technology. Low Crss ( typical 16 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well suited for high efficiency switch mode power supply.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF7N60 Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 4.3

- Continuous (TC = 100°C) 2.7

IDM Drain Current - Pulsed (Note 1) 17.2 VGSS Gate-Source Voltage ±30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 4.3 EAR Repetitive Avalanche Energy (Note 1) 4.8 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.38 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8 from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 2.60 °CW RθJA Thermal Resistance, Junction-to-Ambient 62.5 °CW

©2000 Fairchild Semiconductor International Rev. A, April 2000

Page Summary Contents For Fairchild FQPF7N60 600V N-Channel MOSFET Specifications

Page 1 April 2000 QFETTM FQPF7N60 600V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 4.3A, 600V, RDS(on) = 1.0Ω @VGS = 10 V transistors are produced using ...
Page 2 Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆BVDSS Br...
Page 3 ap ac ita nc [p F] ra in -S ou rc n- es is ta nc , D ra in ur re nt [A Typical Characteristics Top : 15.0 V 10.0 V 8.0 V 7.5 V 7.0 V 6.5 V 6.0 V Bottom : 5.5 V Notes : Notes : 1. 250s Pulse Test -55 ...
Page 4 BV DS , ( or al ize d) , D ra in ur re nt [A Dr ai n- So ur ce re ak do wn ol ta ge Typical Characteristics (Continued) Notes : 1. V GS = 0 V Notes : 1. V GS = 10 V 2. I = 3.7 A TJ, Junction Temperatu...
Page 5 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Inductive Switchi...
Page 6 Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ( Driver ) IF...
Page 7 Package Dimensions TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] ©2000 Fairchild Semiconductor International Rev. A, April 2000
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ Hi S...
