Fairchild FQPF12N60CT 600V N-Channel MOSFET Data Manual

Summary

This high-performance N-Channel MOSFET, FQPF12N60CT, is engineered for demanding power applications requiring maximum efficiency and fast switching. Featuring low on-state resistance ($R_{DS(on)}$) and rapid transition times, it minimizes energy loss in complex power circuits. The comprehensive data sheet provides detailed specifications—including electrical characteristics, thermal limits, and switching performance—making it ideal for engineers designing Switched Mode Power Supplies (SMPS), Active Power Factor Correction (APFC), and high-efficiency electronic lamp ballasts.

📄 Preview PAGE OF 8

Page 1 Text Content

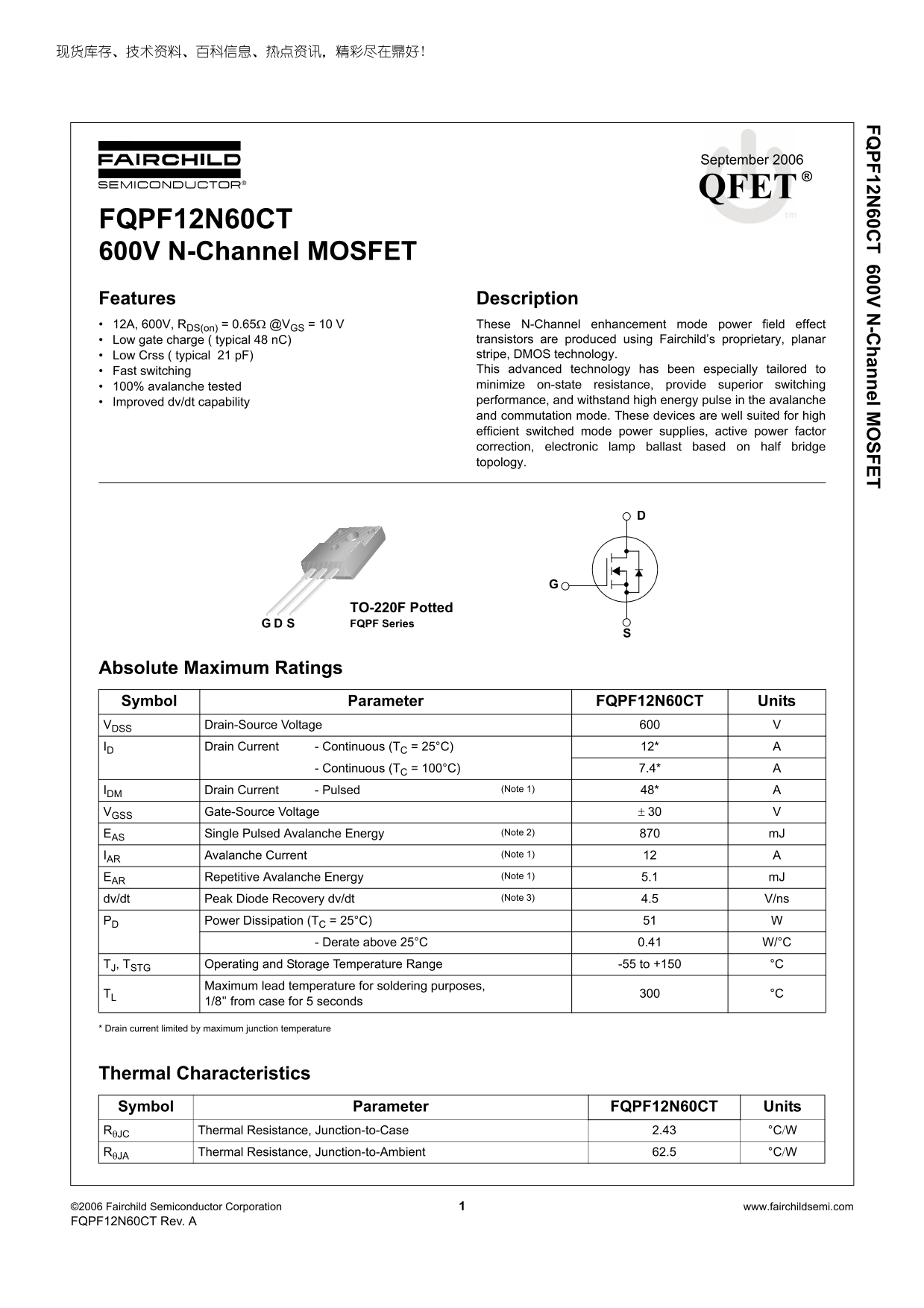

现货库存、技术资料、百科信息、热点资讯,精彩尽在鼎好! FQ PF12N 60C T 600V N -C hannel M SFET

September 2006

FQPF12N60CT 600V N-Channel MOSFET Features Description 12A, 600V, RDS(on) = 0.65Ω @VGS = 10 V These N-Channel enhancement mode power field effect

Low gate charge ( typical 48 n C) transistors are produced using Fairchild’s proprietary, planar Low Crss ( typical 21 p F) stripe, DMOS technology. Fast switching This advanced technology has been especially tailored to 100% avalanche tested minimize on-state resistance, provide superior switching Improved dv/dt capability performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficient switched mode power supplies, active power factor correction, electronic lamp ballast based on half bridge topology.

TO-220F Potted SD FQPF Series

Absolute Maximum Ratings Symbol Parameter FQPF12N60CT Units VDSS Drain-Source Voltage

ID Drain Current - Continuous (TC = 25°C) 12*

- Continuous (TC = 100°C) 7.4*

IDM Drain Current - Pulsed (Note 1) 48*

VGSS Gate-Source Voltage ± 30

EAS Single Pulsed Avalanche Energy (Note 2) m J

IAR Avalanche Current (Note 1)

EAR Repetitive Avalanche Energy (Note 1) 5.1 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.41 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

* Drain current limited by maximum junction temperature

Thermal Characteristics Symbol Parameter FQPF12N60CT Units RθJC Thermal Resistance, Junction-to-Case 2.43 °C/W

RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2006 Fairchild Semiconductor Corporation www.fairchildsemi.com FQPF12N60CT Rev. A

Page Summary Contents For Fairchild FQPF12N60CT 600V N-Channel MOSFET Data Manual

Page 1 现货库存、技术资料、百科信息、热点资讯,精彩尽在鼎好! FQ PF12N 60C T 600V N -C hannel M SFET September 2006 FQPF12N60CT 600V N-Channel MOSFET Features Description 12A, 600V, RDS(on) = 0.65Ω @VGS = 10 V These N-Channel enhancem...
Page 2 FQ PF12N 60C T 600V N -C hannel M SFET Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FQPF12N60CT FQPF12N60CT TO-220F Electrical Characteristics T...
Page 3 FQ PF12N 60C T 600V N -C hannel M SFET DS (O N) [Ω ap ac ita nc [p F] D, ra in ur re nt [A ra in -S ou rc n- es is ta nc Typical Performance Characteristics Figure 1. On-Region Characteristics Figure ...
Page 4 FQ PF12N 60C T 600V N -C hannel M SFET BV DS S, (N or al iz ed D, ra in ur re nt [A ra in -S ou rc Br ea kd ow Vo lta ge Typical Performance Characteristics (Continued) Figure 7. Breakdown Voltage Var...
Page 5 FQ PF12N 60C T 600V N -C hannel M SFET Gate Charge Test Circuit & Waveform Resistive Switching Test Circuit & Waveforms Unclamped Inductive Switching Test Circuit & Waveforms www.fairchild...
Page 6 FQ PF12N 60C T 600V N -C hannel M SFET Peak Diode Recovery dv/dt Test Circuit & Waveforms www.fairchildsemi.com FQPF12N60CT Rev. A
Page 7 FQ PF12N 60C T 600V N -C hannel M SFET Package Dimensions TO-220F Potted * Front/Back Side Isolation Voltage : 4000V Dimensions in Millimeters www.fairchildsemi.com FQPF12N60CT Rev. A
