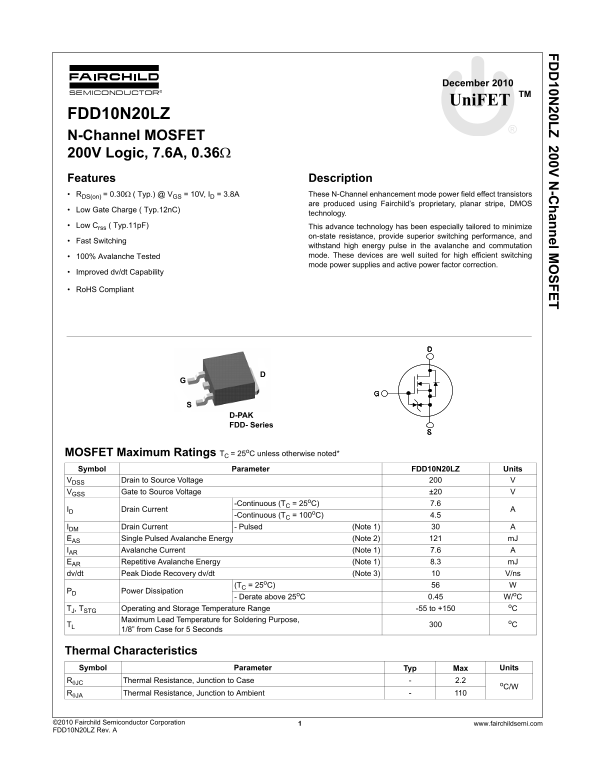

10N 20L 200V -C an el M
December 2010
Uni FET
FDD10N20LZ N-Channel MOSFET 200V Logic, 7.6A, 0.36 Features Description
RDS(on) = 0.30( Typ.) @ VGS = 10V, ID = 3.8A These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS
Low Gate Charge ( Typ.12n C)
technology.
Low Crss ( Typ.11p F) This advance technology has been especially tailored to minimize
on-state resistance, provide superior switching performance, and
Fast Switching
withstand high energy pulse in the avalanche and commutation 100% Avalanche Tested mode. These devices are well suited for high efficient switching mode power supplies and active power factor correction.
Improved dv/dt Capability
Ro HS Compliant
D-PAK FDD- Series
MOSFET Maximum Ratings TC = 25o C unless otherwise noted* Symbol Parameter FDD10N20LZ Units
VDSS Drain to Source Voltage VGSS Gate to Source Voltage ±20
-Continuous (TC = 25o C) 7.6
ID Drain Current
-Continuous (TC = 100o C) 4.5
IDM Drain Current - Pulsed (Note 1) EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 7.6 EAR Repetitive Avalanche Energy (Note 1) 8.3 m J
dv/dt Peak Diode Recovery dv/dt (Note 3) V/ns
(TC = 25o C)
PD Power Dissipation
- Derate above 25o C 0.45 W/o C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 Maximum Lead Temperature for Soldering Purpose, o C
1/8” from Case for 5 Seconds
Thermal Characteristics Symbol Parameter Typ Max Units
RJC Thermal Resistance, Junction to Case - 2.2
RJA Thermal Resistance, Junction to Ambient -
