Fairchild FDD5N60NZ N-Channel MOSFET Data Handbook

Summary

The FDD5N60NZ is a high-performance N-Channel MOSFET engineered for efficient, robust power management up to 600V and 4A. Utilizing advanced planar stripe technology, this device ensures superior switching performance, minimal on-state resistance, and fast operation in demanding circuits such as active PFC and sophisticated power supplies. The comprehensive manual provides detailed technical specifications, including maximum ratings, thermal properties, and dynamic electrical characteristics, making it an essential resource for engineers designing high-efficiency electronic systems.

📄 Preview 📖 Table of Contents Contents PAGE OF 8

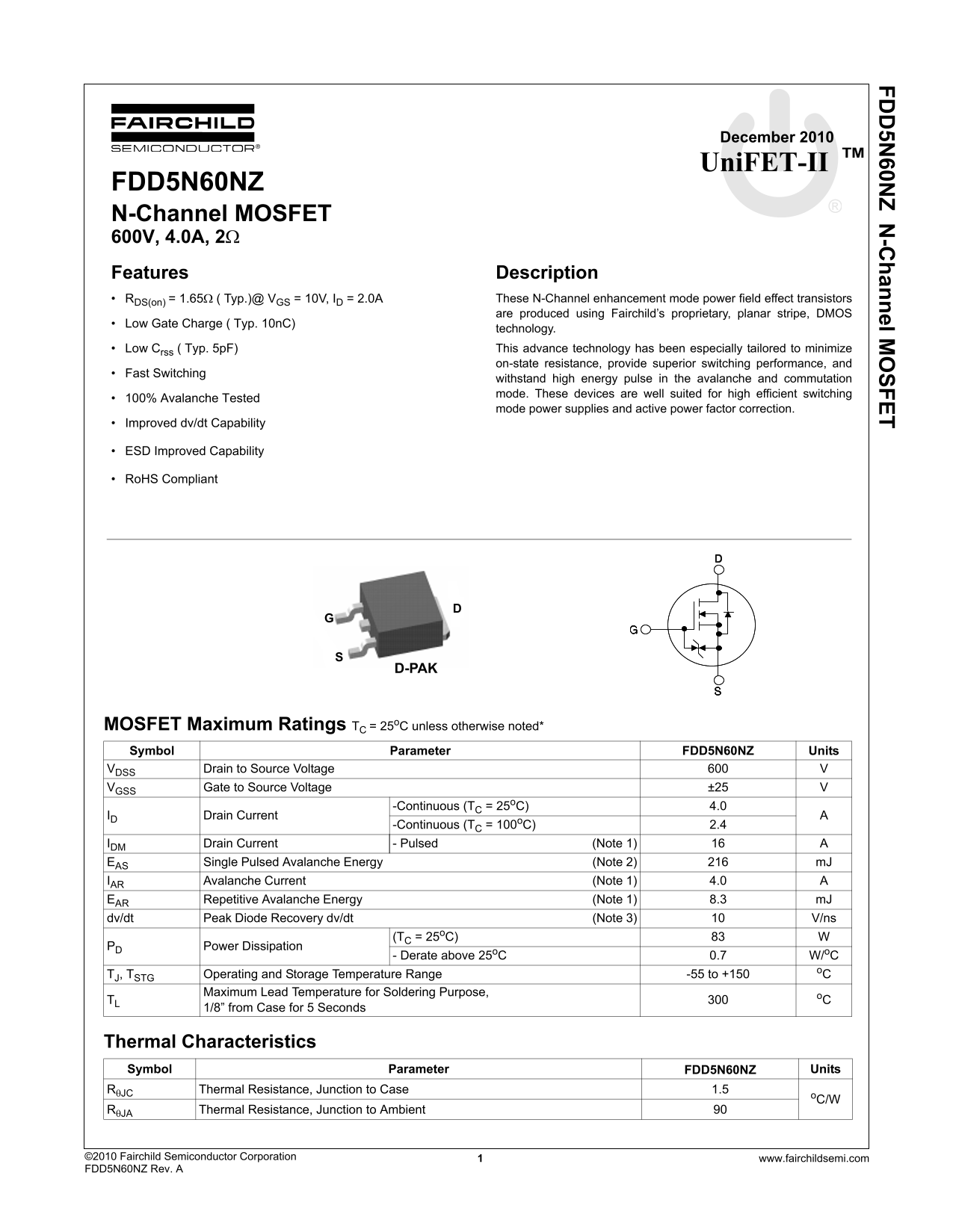

Page 1 Text Content

5N 60N -C an el M

December 2010

Uni FET-II

FDD5N60NZ N-Channel MOSFET 600V, 4.0A, 2 Features Description

RDS(on) = 1.65 ( Typ.)@ VGS = 10V, ID = 2.0A These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS

Low Gate Charge ( Typ. 10n C)

technology. Low Crss ( Typ. 5p F) This advance technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and

Fast Switching

withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficient switching

100% Avalanche Tested

mode power supplies and active power factor correction.

Improved dv/dt Capability

ESD Improved Capability

Ro HS Compliant

D-PAK

MOSFET Maximum Ratings TC = 25o C unless otherwise noted* Symbol Parameter FDD5N60NZ Units

VDSS Drain to Source Voltage VGSS Gate to Source Voltage ±25

-Continuous (TC = 25o C) 4.0

ID Drain Current

-Continuous (TC = 100o C) 2.4

IDM Drain Current - Pulsed  (Note 1) EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current  (Note 1) 4.0 EAR Repetitive Avalanche Energy  (Note 1) 8.3 m J

dv/dt Peak Diode Recovery dv/dt  (Note 3) 10 V/ns

(TC = 25o C)

PD Power Dissipation

- Derate above 25o C 0.7 W/o C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 Maximum Lead Temperature for Soldering Purpose, o C

1/8” from Case for 5 Seconds

Thermal Characteristics Symbol Parameter FDD5N60NZ Units

RJC Thermal Resistance, Junction to Case 1.5

RJA Thermal Resistance, Junction to Ambient 90

©2010 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FDD5N60NZ Rev. A

Page Summary Contents For Fairchild FDD5N60NZ N-Channel MOSFET Data Handbook

Page 1 5N 60N -C an el M December 2010 Uni FET-II FDD5N60NZ N-Channel MOSFET 600V, 4.0A, 2 Features Description RDS(on) = 1.65 ( Typ.)@ VGS = 10V, ID = 2.0A These N-Channel enhancement mode power field ef...
Page 2 5N 60N -C an el M Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDD5N60NZ FDD5N60NZ D-PAK 380mm 16mm Electrical Characteristics TC = 25o C unless...
Page 3 5N 60N -C an el M Typical Performance Characteristics it an (O ) [ , D ra in rr en t[ ra in -S rc -R es is ta ce Figure 1. On-Region Characteristics Figure 2. Transfer Characteristics VGS = 12.0V *Not...
Page 4 5N 60N -C an el M Typical Performance Characteristics (Continued) , [ rm al iz ed , D ra in rr en [A ra in -S rc re kd lt Figure 7. Breakdown Voltage Variation Figure 8. On-Resistance Variation vs. Te...
Page 5 5N 60N -C an el M Gate Charge Test Circuit & Waveform Resistive Switching Test Circuit & Waveforms Unclamped Inductive Switching Test Circuit & Waveforms www.fairchildsemi.com5 FDD5N60NZ R...
Page 6 5N 60N -C an el M Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period...
Page 7 5N 60N -C an el M Mechanical Dimensions D-PAK Dimensions in Millimeters www.fairchildsemi.com7 FDD5N60NZ Rev. A
Page 8 5N 60N -C an el M TRADEMARKS The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries, and is not intended to be...

Manual Details

Brand Fairchild
Pages 8
File Size 235.46 KB
Published July 06, 2026
6 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the device's static on-resistance?

The typical static drain to source resistance (Rds(on)) is 1.65 ohms when tested at V = 10V and I = 2.0A.

What is the maximum continuous operating temperature range?

The Operating Temperature Range is -55 to +150 degrees C.

Why are the features optimized for switching applications?

They use UniFET-II technology, offering superior switching performance and improved dv/dt capability for high efficiency.

What is its maximum continuous drain current rating at 25°C?

The device has a maximum continuous drain current (Id) of 4.0 Amperes at 25°C.
