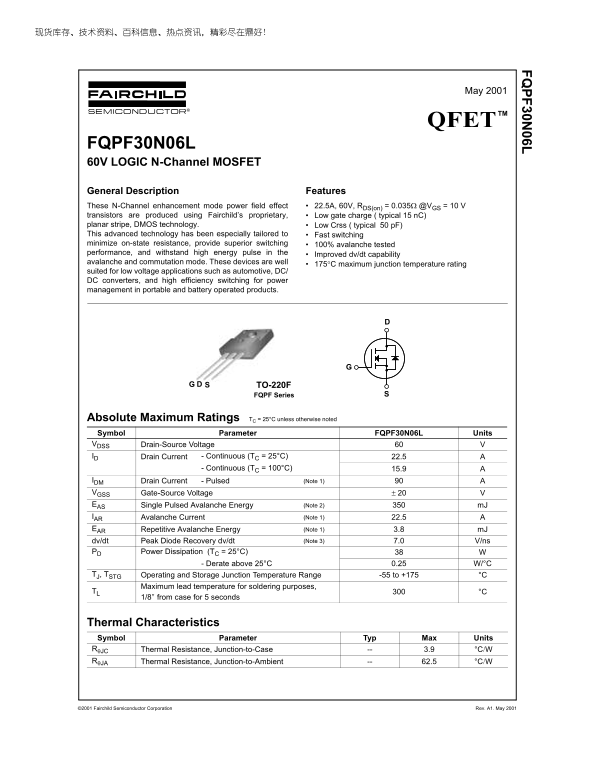

Page 1 Text Content

FQ PF30N 06L

May 2001

FQPF30N06L 60V LOGIC N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 22.5A, 60V, RDS(on) = 0.035Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 15 n C) planar stripe, DMOS technology. Low Crss ( typical 50 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well

175°C maximum junction temperature rating

suited for low voltage applications such as automotive, DC/ DC converters, and high efficiency switching for power management in portable and battery operated products.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF30N06L Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 22.5

- Continuous (TC = 100°C) 15.9

IDM Drain Current - Pulsed (Note 1) VGSS Gate-Source Voltage ± 20 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 22.5 EAR Repetitive Avalanche Energy (Note 1) 3.8 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 7.0 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.25 W/°C

TJ, TSTG Operating and Storage Junction Temperature Range -55 to +175 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 3.9 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2001 Fairchild Semiconductor Corporation Rev. A1. May 2001

Page Summary Contents For Fairchild FQPF30N06L LOGIC N-Channel MOSFET Specifications

Page 1 FQ PF30N 06L May 2001 FQPF30N06L 60V LOGIC N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 22.5A, 60V, RDS(on) = 0.035Ω @VGS = 10 V transistors are pr...
Page 2 FQ PF30N 06L Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250...
Page 3 FQ PF30N 06L Typical Characteristics Ca pa cit an ce [p F] S( N) [m , D ra in Cu rre nt [A ra in -S ou rc n- Re si st an ce VGS Top : 10.0 V 8.0 V 6.0 V 5.0 V 4.5 V 4.0 V 3.5 V Bottom : 3.0 V ※ Notes ...
Page 4 FQ PF30N 06L Typical Characteristics (Continued) BV DS , ( No rm ali ze d) , D ra in ur re nt [A Dr ain -S ou rc e B re ak do wn olt ag 0.9 ※ Notes : 1. VGS = 0 V 0.5 ※ Notes : 2. ID = 250 μA 1. VGS =...
Page 5 FQ PF30N 06L Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Indu...
Page 6 FQ PF30N 06L Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ...
Page 7 FQ PF30N 06L Package Dimensions TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] ©2001 Fairchild Semiconductor Corporation Rev. A1. May 2001
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...
