Fairchild FQPF9N08L 80V Logic N-Channel MOSFET Specifications (1)(1)

Summary

The FQPF9N08L is a high-performance 80V N-Channel MOSFET designed for efficient power switching in low voltage, demanding applications. Featuring superior characteristics like low on-state resistance ($R_{DS(on)}$), fast switching speed, and robust handling of high energy pulses up to 175°C, it excels in DC/DC converters, automotive systems, and motor control circuits. This manual provides comprehensive electrical specifications, absolute maximum ratings, thermal analysis, and detailed dynamic switching parameters necessary for professional integration design.

📄 Preview PAGE OF 8

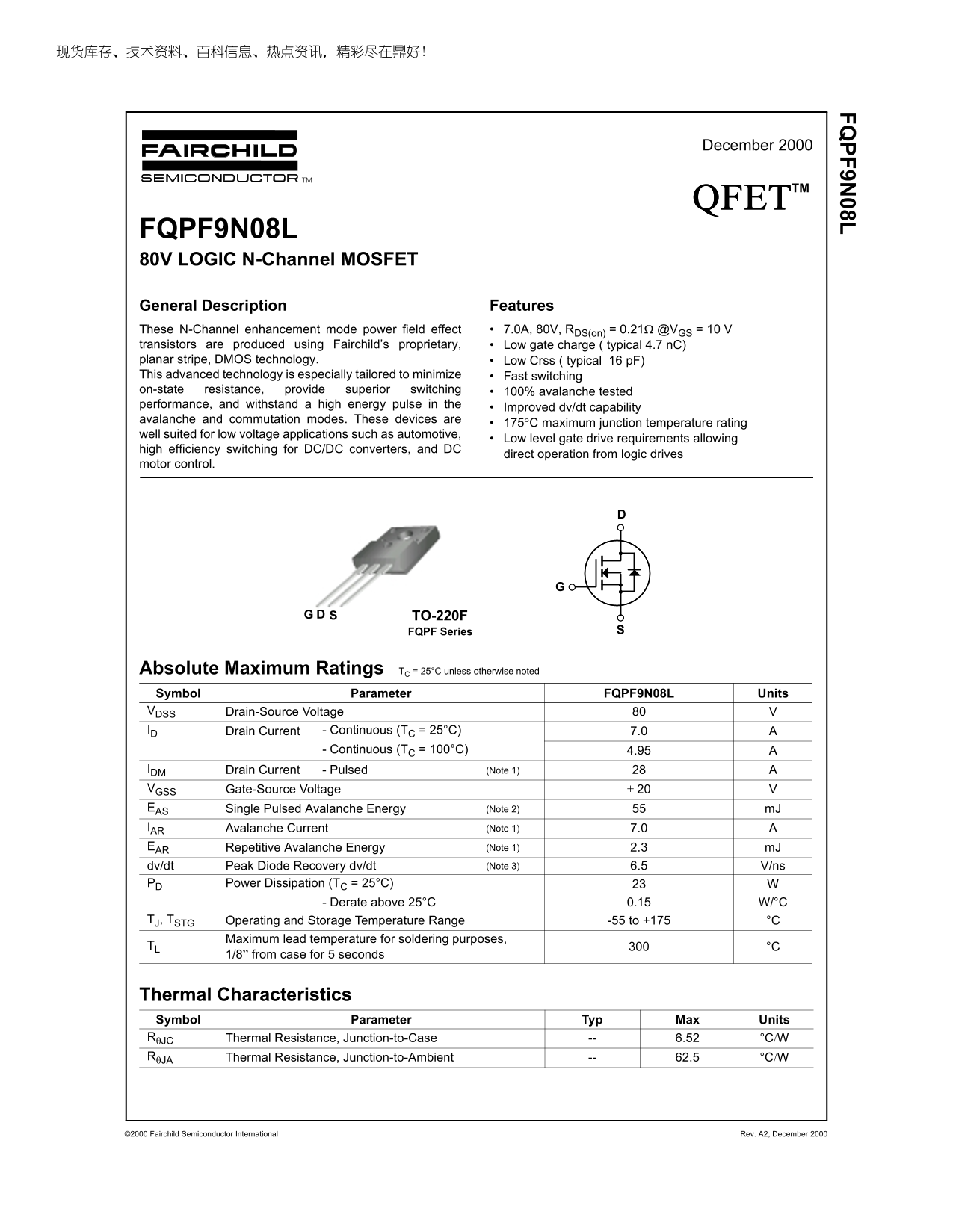

Page 1 Text Content

December 2000

QFETTM

FQPF9N08L 80V LOGIC N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 7.0A, 80V, RDS(on) = 0.21Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 4.7 n C) planar stripe, DMOS technology. Low Crss ( typical 16 p F) This advanced technology is especially tailored to minimize Fast switching on-state resistance, provide superior switching 100% avalanche tested performance, and withstand a high energy pulse in the

Improved dv/dt capability

avalanche and commutation modes. These devices are

175°C maximum junction temperature rating

well suited for low voltage applications such as automotive,

Low level gate drive requirements allowing

high efficiency switching for DC/DC converters, and DC

direct operation from logic drives

motor control.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF9N08L Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 7.0

- Continuous (TC = 100°C) 4.95

IDM Drain Current - Pulsed (Note 1) VGSS Gate-Source Voltage ± 20 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 7.0 EAR Repetitive Avalanche Energy (Note 1) 2.3 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 6.5 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.15 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +175 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8” from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 6.52 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2000 Fairchild Semiconductor International Rev. A2, December 2000

Page Summary Contents For Fairchild FQPF9N08L 80V Logic N-Channel MOSFET Specifications (1)(1)

Page 1 December 2000 QFETTM FQPF9N08L 80V LOGIC N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 7.0A, 80V, RDS(on) = 0.21Ω @VGS = 10 V transistors are produc...
Page 2 8L Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆BVDSS...
Page 3 8L Typical Characteristics ap ac ita nc [p F] ra in -S ou rc n- es is ta nc , D ra in ur re nt [A VGS Top : 10.0 V 8.0 V 6.0 V 5.0 V 4.5 V 4.0 V 3.5 V Bottom : 3.0 V ※ Notes : ※ Notes : 1. 250μs Pulse...
Page 4 8L Typical Characteristics (Continued) BV SS , ( or al iz ed , D ra in ur re nt [A ra in -S ou rc Br ea kd ow Vo lta ge 0.9 ※ Notes : 1. V GS = 0 V ※ Notes : 1. V GS = 5 V 2. ID = 4.65 A , Junction Te...
Page 5 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Inductive Switchi...
Page 6 Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ( Driver ) IF...
Page 7 8L Package Dimensions TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] Rev. A2, December 2000©2000 Fairchild Semiconductor International
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ Hi S...
