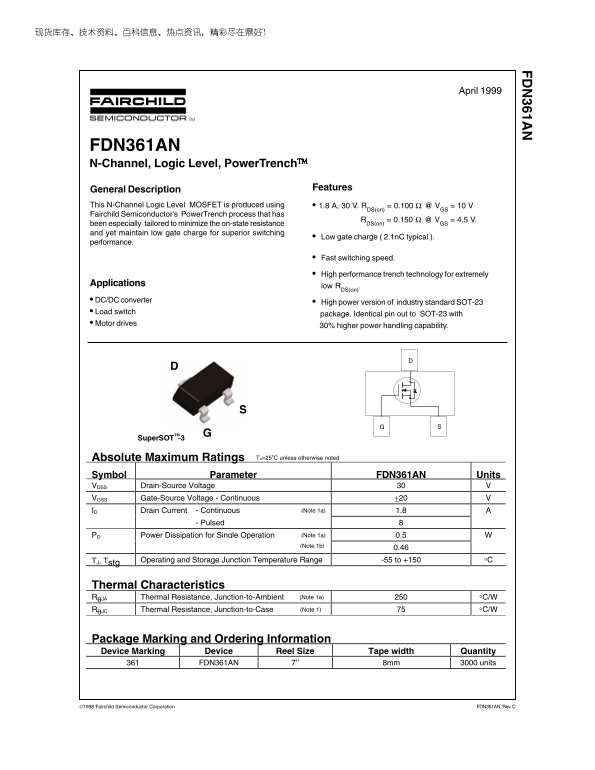

FDN361AN N-Channel, Logic Level, Power TrenchΤΜ

General Description Features

This N-Channel Logic Level MOSFET is produced using • 1.8 A, 30 V. R = 0.100 Ω @ V = 10 V

DS(on) GS

Fairchild Semiconductor's Power Trench process that has

= 0.150 Ω @ V = 4.5 V. been especially tailored to minimize the on-state resistance DS(on) GS

and yet maintain low gate charge for superior switching

Low gate charge ( 2.1n C typical ).

performance.

Fast switching speed.

High performance trench technology for extremely

Applications

low R DS(on)

• DC/DC converter

High power version of industry standard SOT-23

• Load switch

package. Identical pin out to SOT-23 with

• Motor drives

30% higher power handling capability.

Super SOT -3TM

Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter FDN361AN Units VDSS Drain-Source Voltage VGSS Gate-Source Voltage - Continuous ±20 ID Drain Current - Continuous (Note 1a) 1.8

- Pulsed

PD Power Dissipation for Single Operation (Note 1a) 0.5

(Note 1b) 0.46 TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C

Thermal Characteristics RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) °C/W

Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity

FDN361AN 7’’ 8mm 3000 units

1998 Fairchild Semiconductor Corporation FDN361AN, Rev. C

Page Summary Contents For FAIRCHILD FDN361AN N-Channel Logic Level PowerTrench User's Manual (1)

Page 1 April 1999 FDN361AN N-Channel, Logic Level, Power TrenchΤΜ General Description Features This N-Channel Logic Level MOSFET is produced using • 1.8 A, 30 V. R = 0.100 Ω @ V = 10 V DS(on) GS Fairchild Se...
Page 2 361A DMOS Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA...
Page 3 361A Typical Characteristics (continued) (O AL IZ ED IN EN (A IN -S (A DR IN -S -R ES IS TA CE 10VGS 6.0V 4.5V = 3. 5VGS I , DRAIN CURRENT (A) V , DRAIN DS -SOURCE VOLTAGE (V) Figure 1. On-Region Char...
Page 4 361A Typical Characteristics (continued) AI EN (A , G AT -S LT AG (V r( t) IZ IV IE IS I = 1.8AD V = 5VDS 10V C i ss C oss f = 1 MHz C rss V = 0 VGS Q , GATE CHARGE (n C) V , DRAIN TO SOURCE VO DS LTA...
Page 5 Super SOTTM-3 Tape and Reel Data and Package Dimensions SSOT-3 Packaging Configuration: Figure 1.0 Customize Label Packaging Description: SSOT-3 parts are shipped in tape. The carrier tape is made fro...
Page 6 Super SOTTM-3 Tape and Reel Data and Package Dimensions, continued SSOT-3 Embossed Carrier Tape Configuration: Figure 3.0 B0 Wc User Direction of Feed Dimensions are in millimeter Pkg type A0 B0 D0 D1...
Page 7 Super SOTTM-3 Tape and Reel Data and Package Dimensions, continued Super SOT-3 (FS PKG Code 32) Scale 1:1 on letter size paper Dimensions shown below are in: inches [mil limeters] Part Weight per uni...
